| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | FCC,CE |
| Model Number: | ND-PSNG1116F-250 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | According to the different products , the monthly output is different |
| Total Power: | 52V 4.8A 250W | Application: | For IPC,VOIP,WirelessAP |
|---|---|---|---|
| Port: | 16 Ports | IEEE 802.3af: | 15.4 W |
| Size: | 440*290*44mm | Power Pin: | 1/2+ ; 3/6- |

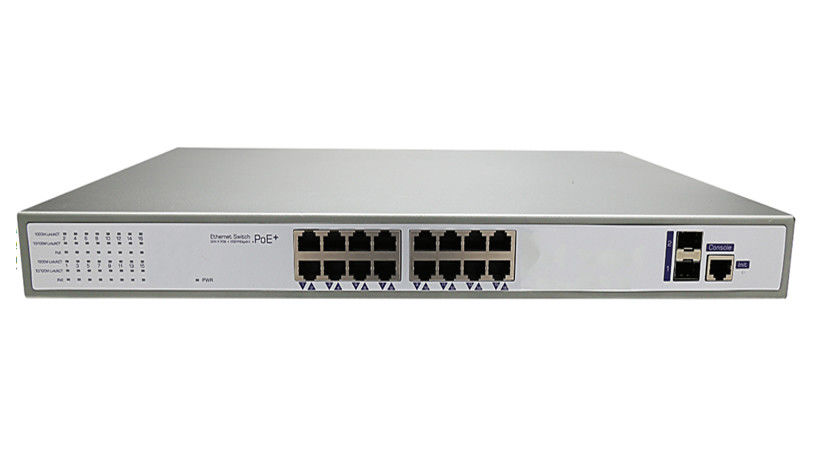

16 Ports 10/100/1000M 250W ethernet PoE Switch for IP camera(IEEE 802.3af)
Non management*Compatible IEEE802 3af at,IEEE802 3az function*6 X 10 100 1000Mbps RJ45 port*4 X PSE port, Output power up
Feature
Support IEEE802.3af/IEEE802.3at standard
802.3az support energy-efficient features
Automatically detect the PD
PoE port support a single output power up to 15.4W
Port power is automatically assigned
Dynaic Power Allocation
Specification
●16 x 10/100/1000Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports, Data transmission up to 100m
● Uplink port:2 Gigabit Fiber Ports,Data transmission: depends on the optical module
● Maximum 15.4 watts power for each PoE port
● IEEE 802.3af PoE Standard Compliant.
● PoE Power Supply Type:End-Span(1/2+,3/6-)
●Total Power:52V4.8A 250W,build-in power supply
Connection diagram
Order information
| Part No | Description of product | Unit |
| ND-PSNG1116F-250- | ND-PSNG1116F-250 PoE Switch | pcs |
