4A B Building Zhuao Industrial Park Gushu Xixiang Baoan District Shenzhen,China,518126 | info@newbridge.com.cn |
Place of Origin: | SHENZHEN,CHINA |
Brand Name: | NEWBRIDGE |
Certification: | FCC,CE |
Model Number: | ND-AHD-1V1D-T/RF |
Minimum Order Quantity: | 1PC |
---|---|
Price: | Negotiation |
Packaging Details: | packing can be done by customer's requested, usually used in carton |
Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | According to the different products , the monthly output is different |
Wavelength: | 1310nm&1550nm | Optical Interface: | FC、ST 、SC (optional) |
---|---|---|---|
Temperature: | -40ºC ~85ºC | Optical Connector: | FC、ST、SC (optional) |
Power: | DC 5V/2A | Output Power: | -8~3dBm |

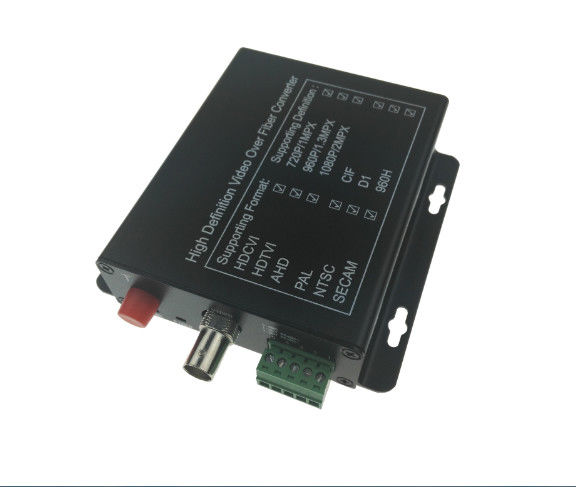

Hi-Definition Analog Video TVI/CVI/AHD to Fiber Converter
Introduction
Our 1-Ch TVI/CVI/AHD TO Fiber Converters is universal type supporting High Definition Analog video format HD-TVI / HD-CVI / AHD , can simultaneously transmit 1 channels video and 1-ch RS485 over one core multimode or single-mode optical fiber. It also supports the regular analog video format such as PAL / NTSC /SECAM , it is a kind of universal fiber transmission solution / product for CCTV analog video/data signals . Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status.
Features
•Lossless non-compression real time transmission.
•Automatically identify formats of input video :AHD/TVI/CVI/PAL/NTSC/SECAM
•Support 720P/25/30/50Hz , 960P/25/30Hz,1080P/30Hz
•Advanced lightning protection design ,support 5.7KV lightning protection
•Through LED indicators to inform its functional mode
•Industrial wide range of operational temperature
•Stand-alone or Rack-mounted, simple installation.

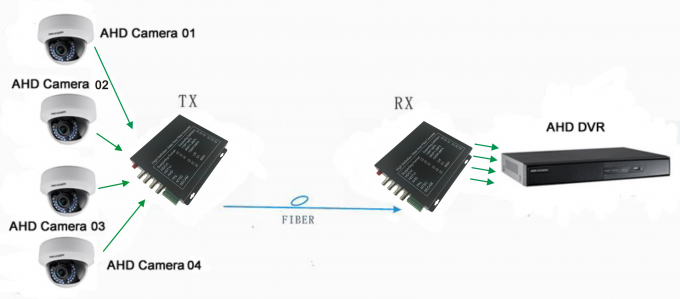

AHD TO Fiber Converter System connection diagram
Technical Specification
Optics:
Wavelength | WDM:1310nm/1550nm |
Output Power | -8~3dBm |
Optic fiber | 50/125u multimode,62.5/125u multimode,9/125u single mode |
Rx sensitivity | -26dBm |
Optical connector | FC,ST,SC (optional) |
Distance | 0~550M (MM) / 0~80KM (SM) (Default distance is 20Km) |
Video:
Number of Channels | 1 |
Input/output impedance | 75 Ohm (unbalance) |
Standard video input/output voltage | 1.0Vp-p |
Video Bandwidth | 50MHz |
Sampling Bandwidth | 8bit |
Sampling Frequency | 108MHz |
Signal to noise ratio | >67dB |
Rise and Fall time | <0.8ns |
Optical Signal Intrinsic Jitter | <0.2 UI |
Differential Gain | < ±1.5% |
Differential Phase | < ±1° |
Connector | BNC |
Supporting video pixel | 1280(H)x720(V)@30Hz/1MPX |
Data:
Protocol | Default :RS485 (RS232/RS422 Optional) |
Number of channels | 1 |
Connector | 5pins Terminal Blocks |
Data Rate | 0-200Kbps |
Directions | Default :Simplex from Rx to Tx (BIDI duplex optional) |
Mechanical Structure & Environment
Power | DC5V 2A |
Power Consumption | ≤6W |
Working Temperature | -15ºC ~65ºC |
Storage Temperature | -40ºC ~85ºC |
Relative Humidity | 5%~95% ( no condensation) |
MTBF | ≥ 100000Hours |
Ordering information
Model Number | Product Configuration | Remark | Fiber Mode | Wavelengths | Transmission Distance |
HD-AHD-1V-T/RF | 1Ch Forward AHD Video 1080P | FC/SC/ST | Single-mode | | |
HD-AHD-1V1D-T/RF | 1Ch Forward AHD Video 1080P +1 Ch Reverse Data | FC/SC/ST | Single-mode | WDM | 20Km |
Packing information
Dimensions of products (Pcs per Tx or Rx) | |||||
Module name | Configuration | Long (mm) | Wide(mm) | High(mm) | Volume(mm³) |
ND-AHD-1V-T/RF | 1-Ch video 1080P | 108 | 102 | 27 | 297432 |
ND-AHD-1V1D-T/RF | 1-Ch video 1080P + 1-Ch RS485 data | 108 | 102 | 27 | 297432 |
Dimensions of packing box(pair/ Tx + Rx) | |||||
Module name | Configuration | Long (mm) | Wide(mm) | High(mm) | Volume(mm³) |
ND-AHD-1V-T/RF | 1-Ch video 1080P | 301 | 247 | 61 | 4535167 |
ND-AHD-1V1D-T/RF | 1-Ch video 1080P + 1-Ch RS485 data | 301 | 247 | 61 | 4535167 |
Shipping weight (pair /Tx+Rx & power adaptors & packages) | |||||
Module name | Configuration | weight (kg) | Package type | ||
ND-AHD-1V-T/RF | 1-Ch video 1080P | 0.95 | Carton box | ||
ND-AHD-1V1D-T/RF | 1-Ch video 1080P + 1-Ch RS485 data | 1.0 | Carton box |
Remark :
•Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
•Maximum transmission distance is also limited by .fiber bandwidth.
•Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European, UK or Australian power plug.
•Please feel free to contact factory for any special requirement and customization
