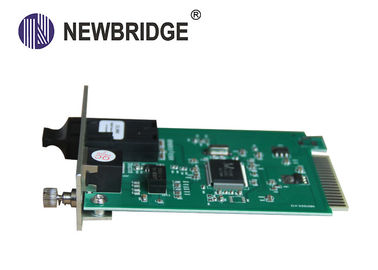

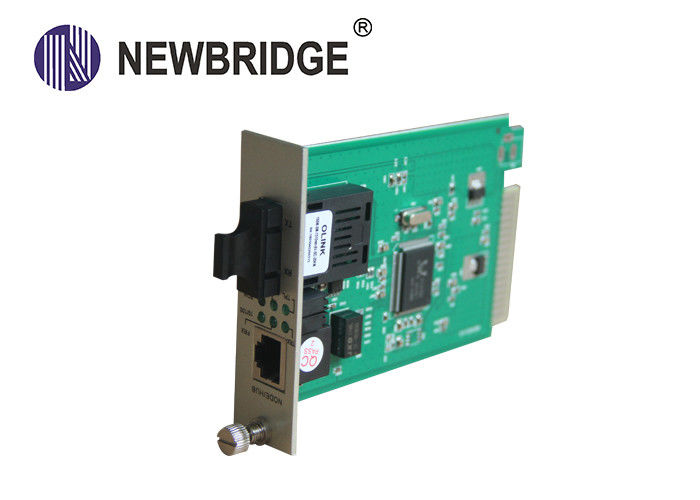

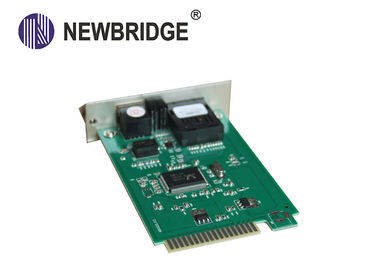

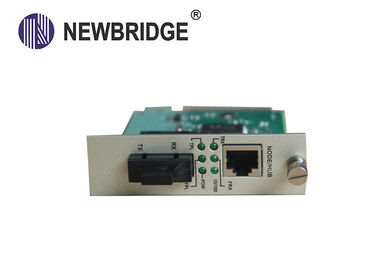

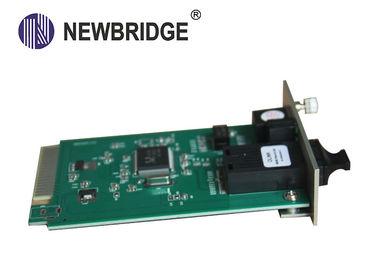

10M 100M Ethernet To Fiber Media Converter type card Copper RJ45 Port

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	NEWBRIDGE
Certification:	FCC,CE
Model Number:	ND-820SK-20

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	packing can be done by customer's requested, usually used in carton
Delivery Time:	According to the quantiy and stocking , 3-4 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	According to the different products , the monthly output is different

Contact Now

Detailed Product Description

RJ-45 Port:	MDI/MDIX	Fiber Connector:	SC/FC/ST
Wavelength:	1310nm/1550nm	Operating Temperature:	0°C~50°C
Storage Humidity:	5%~90% Non-condescending	Standard:	IEEE802.3 ,IEEE802.3u ,IEEE802.3x ,IEEE802.1q,IEEE802.1p QoS,IEEE802.1d

10M 100M Ethernet To Fiber Media Converter type card Copper RJ45 Port

Fiber media converter, or fiber converter, media converter, or Ethernet fiber converter, is designed to extend the copper limit of 100 meters and gets Ethernet connected to 120km max on fiber optics Fiber media converter is a simple networking device that connects two dissimilar media types such as copper twisted pair and fiber optics

Feature

1. 100BASE-FX FIBER to 10/100BASE-T COPPER Ethernet conversion
2. Auto-MDI/MDIX copper RJ45 port
3. 1600byte super data packet transmission
4. Full duplex-flow control, half duplex-back pressure
5. Link fault pass through (LFPT)
6. Full- positioned LEDs to indicate power and network status

Specification

Standard	IEEE802.3 (10BASE-T),IEEE802.3u 100BASE-TX/FX (Fast-Ethernet),IEEE802.3x (Flow Control),IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
10/10 0 BASE-T	STP or UTP Category 5/5e/6 cable (Max. 100m)
100BASE-FX	50/125umfiber cable (5km), 62.5/125um multimode fiber cable (2km) 9/125um singlemode fiber cable (20/40/60/80/100km)
Conversion M ode / D elay T ime	Store-and-Forward < 10us, straight-through<0.9us
Flow control	Full duplex-flow control, Half duplex-back pressure
RJ-45 Port	Auto-MDI/MDIX
Fiber Connector	SC standard, ST/FC optional
Wavelength	1310/1550nm
Power Consumption	<2.5W
MTBF	50,000 hours
BER	<1/1000000000
MAC Address Table	1K
Buffer Size	1M
Operating Temperature	0°C~50°C
Storage Temperature	-40°C~70°C
Storage Humidity	5%~90% non-condescending
