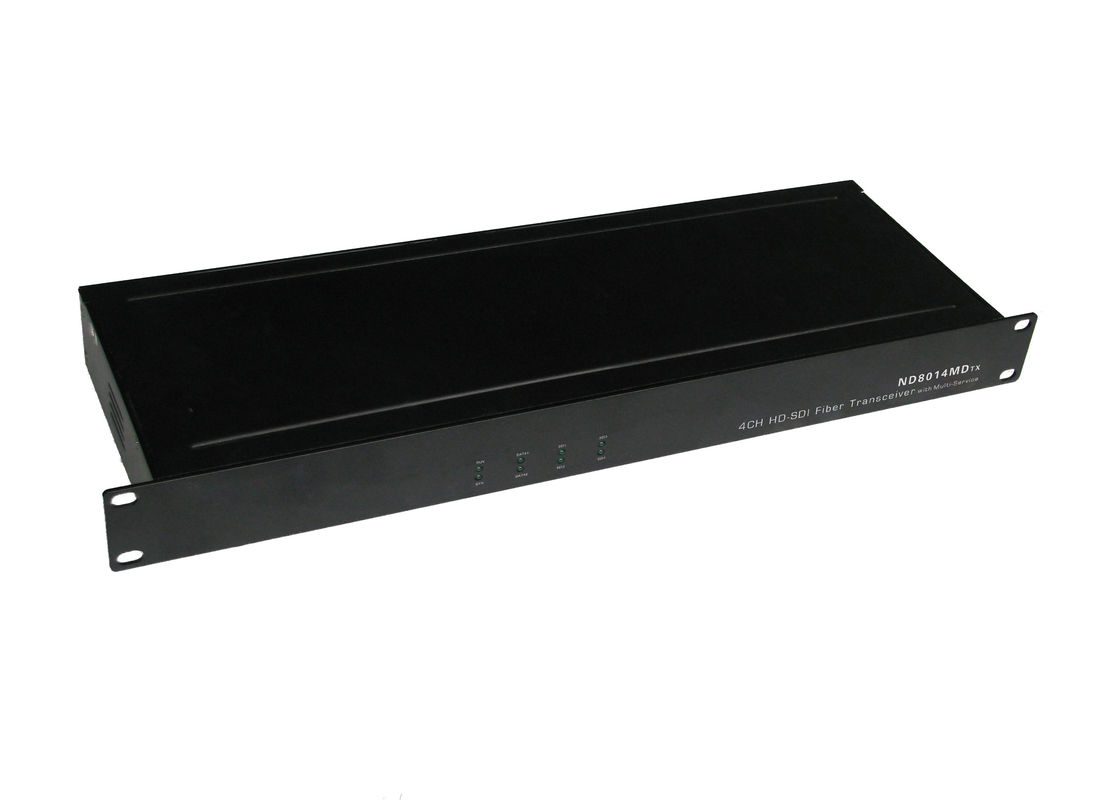

AC 220V CE FCC Certification HD SDI Optical Converter 1550nm Support 4 / 8 Channel Video
1. Overview
Newbridge® ND8014D/ND8018D SD/HD-SDI series Optical Transceivers are a group of perfect and economic transmission device to transmit 4CH/8CH SD/HD-SDI video to up to further distance by one fiber cable, embedded audio and RS485 data via fiber-optic.
Transmitter is used as sending and Receiver is used as receiving .System support in accordance with SMPTE292M, SMPTE259M standard, as well as DVB-ASI (EN50083-9) digital TV signal format.
|
ND-8018D |
l Support 4/8 channel SD/HD/3G-SDI video embedded audio signal via fiber l SD,HD auto-detection, supported transmission rate from 270M bit/s to 1.485G bit/s l Transmission distance is from 0km to 60KM via multimode fiber or single mode fiber. l Support SMPTE 259M (1.485Gbps),SMPTE 259M (270Mbps) and DVB-ASI l With 2CH Bi-Di data l Operation status indication by LED |

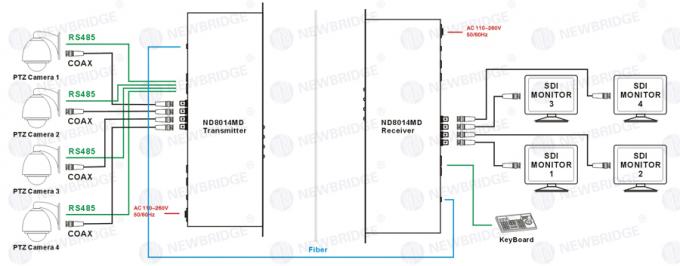

3．Application Diagram
 |
4. Dimensions

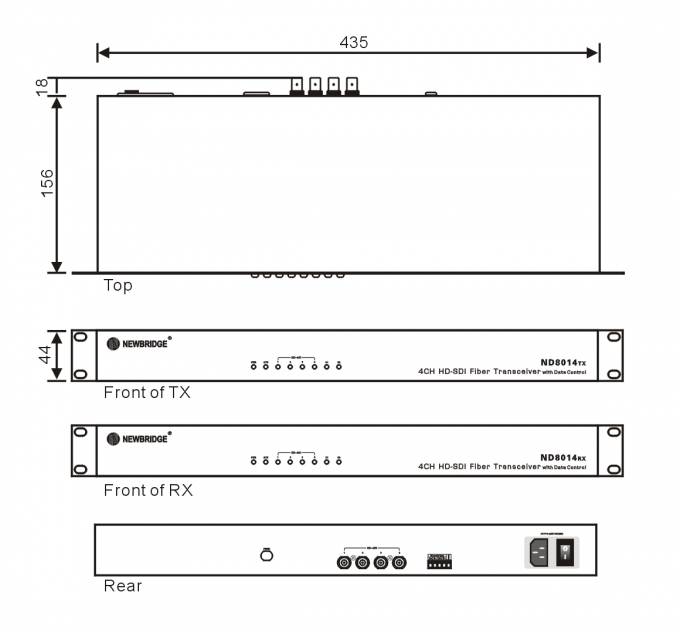

ND8104D

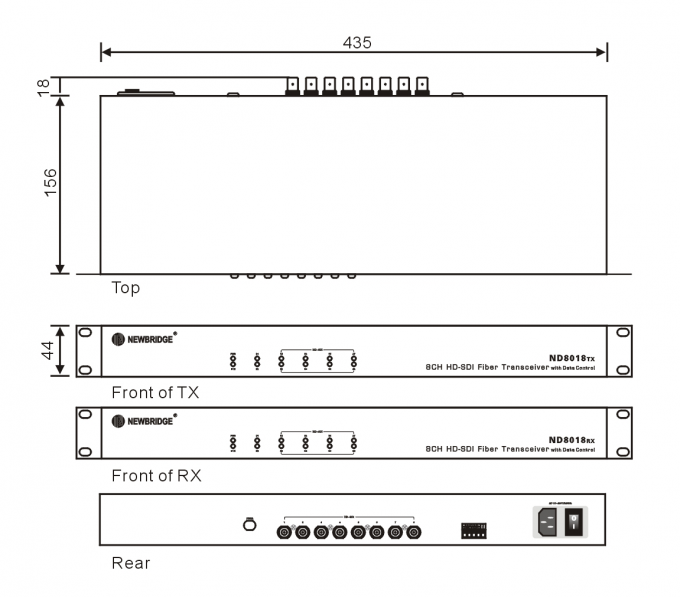

ND8018D
5. Specifications
| Model/Name | ND8104D | ND8108D | |
| Quantity/Type | Single Mode, Single Fiber | ||
| Video port | 4CH BNC SD/HD-SDI | 8CH BNC SD/HD-SDI | |
| Transmission Distance | 0m-20Km/40km/60KM optional | ||
| Fiber Connector | FC | ||
| Wave Length | 1310nm/1550nm | ||
| Transmitted power |
-10dbm～-3dbm <-34dbm |
||
| Maximum Receiving Sensitivity | <-34dbm | ||
| Signal Type | SD-SDI(270Mbps)/HD-SDI(1.485Gbps) | ||
| Support Input Format |
SD: 525i @ 59.94Hz, 625i @ 50Hz HD: 720p @ 25Hz / 29.97Hz / 30Hz 720p @ 50Hz / 59.94Hz / 60Hz 1080i @ 50Hz / 59.94Hz / 60Hz 1080p @23.98Hz/24Hz/25Hz/29Hz/30Hz |
||
| Video Standard | SMPTE 292M , SMPTE 259M | ||
| DATA comm. method | 2CH RS-485/Half duplex/ Industrial terminals | ||
| In-out electrical level | 800mVp-p±10% | ||
| In-0ut Ohm | 75Ohm | ||
| Digital Audio | 48KHz | ||
| AES digital audio channel | 8CH | ||
| Power Supply | AC110V/220V | ||
| Power Consumption | 3~5 Watts | ||
| Operating Temperature | 0°C ~ 60°C / 32°F ~ 140°F | ||
| Storage Temperature | -30°C ~ 70°C / -22°F ~158°F | ||
| Relative Humidity | 20~90% RH (Non-condensation) | ||
| Dimension | 480*162*43mm/18.9*6.38*1.69in | ||
| Weight | 2880g(Tx and Rx) | 2950g(Tx and Rx) | |
6. Order Information
| Part No | Description of product | Unit |
| ND-8014D-Tx | SD/HD-SDI Optical-Transmitter | pcs |
| ND-8014D-Rx | SD/HD-SDI Optical-Receiver | pcs |
| ND-8018D-Tx | SD/HD-SDI Optical-Transmitter | pcs |
| ND-8018D-Rx | SD/HD-SDI Optical-Receiver | pcs |
