Model: | ND1808G | Video Out: | 8 Piece One SDI Port |
---|---|---|---|
Power Supply: | 5V~24V DC | Connection Port: | BNC-F (75Ω) |
Dimension: | 140×230×40mm/5.51×9.07×1.57inches | Weight: | 670g |

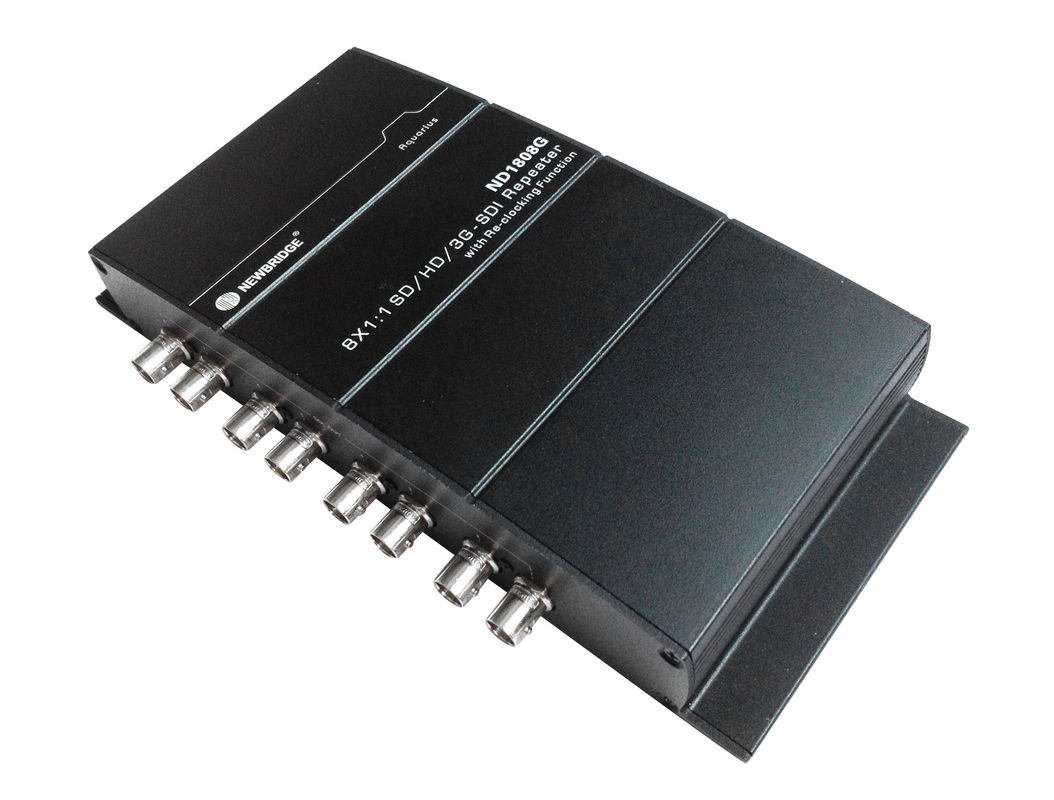

High Speed 8 Port 3G/HD/SD SDI Splitter 1080p with Re-Clocking function
1. Overview
Newbridge® ND1102BD 8X1:1SD/HD/3G -SDI Repeaters with Re-clocking function. These devices receive eight SDI input at the same time and perfectly duplicates them. Then they re-transmit eight channel SDI outputs for real time multi-viewing. They are reliable video devices splitting eight SD-SDI or HD-SDI or 3G-SDI video source to SD or HD-SDI or 3G-SDI display at the same time and takes eight input then re-clocks and equalizes the signal and distributes it to eight identical outputs.
2.Features
ND1808G |
l SDI Standard: HD-SDI, SD-SDI l Data Rates: 270Mbps/1.485 Gbps/2.97Gbps l Signal Type: SMPTE 292M, SMPTE 259M l Two separately buffered outputs l Cable equalization (Beldon 1694A) retiming and signal l Re-clocking function capability – unlimited repeater connection l Dual color LED indication of nput locik and rate l Pass all ancillary data
|
3.Application Diagram
4. Dimensions
ND1808G
5. Specifications
Model | ND8018G |
Video In | 8 piece one SDI port |
Video Out | 8 piece one SDI port |
Input Signal Type | SD-SDI (270Mbps), HD-SDI (1.485Gbps), 3G-SDI(2.97Gbps) |
Support Input Format |
SD-SDI: 480i, 576i HD-SDI: 720p24/25/30/50/59.94/60 all frame rate; 1080i all frame rate, 1035i all frame rate; 1080p all frame rate 3G-SDI: 1080p all frame rate |
SDI Signal Range | 0.8V p-p |
SDI Impedance | 75 ohms |
SDI Coupling Type | AC Coupling |
Input Power | DC 12V/250mA |
Max. Distance |
Belden 1694A SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft ;3G-SDI 140m / 450ft |
Re-clocking | Auto Support 270Mbps/1.485Gbps/2.97Gbps |
Power Supply | 5V~24V DC |
Connection Port | BNC-F (75Ω) |
Operating Temperature | -10°C ~ 60°C / 14°F ~ 140°F |
Storage Temperature | -30°C ~ 70°C / -22°F ~158°F |
Dimension | 140×230×40mm/5.51×9.07×1.57inches |
Weight | 670g |
6. Order Information
Part No | Description of product | Unit |
ND1808G | 8X1:1SD/HD/3G -SDI Repeaters | pcs |
