| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | FCC,CE |
| Model Number: | ND-1404G |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | According to the different products , the monthly output is different |
| Model: | ND1404G | Video In: | 4 Piece One SDI Port |
|---|---|---|---|
| Video Out: | 4 Piece One SDI Port | Power Supply: | 5V~24V DC |
| Connection Port: | BNC-F (75Ω) | Operating Temperature: | -10°C ~ 60°C / 14°F ~ 140°F |
| Storage Temperature: | -30°C ~ 70°C / -22°F ~158°F | Dimension: | 92 X 119 X 36 Mm /3.62x 2.56 X 1.10 Inches |
| Weight: | 220g |

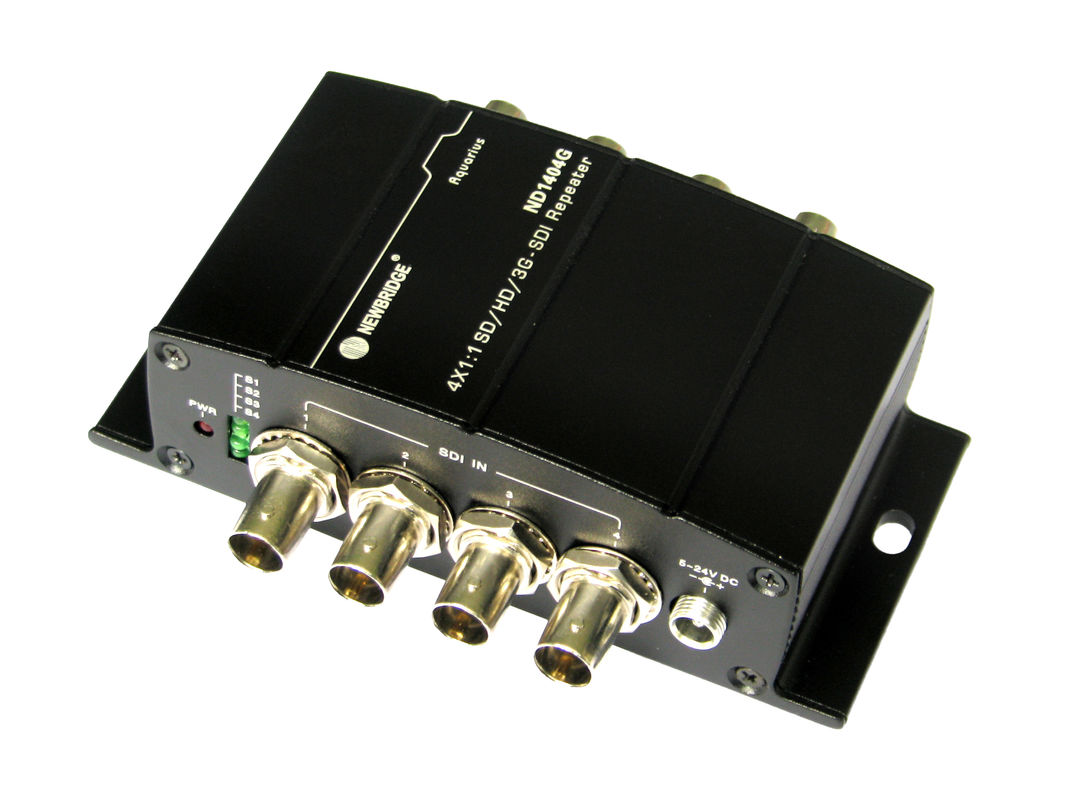

4X1:1SD/HD/3G -SDI Repeaters with Re-clocking function
1. Overview
Newbridge® ND1102BD 4X1:1SD/HD/3G -SDI Repeaters with Re-clocking function. These devices receive four SDI input at the same time and perfectly duplicates them. Then they re-transmit four channel SDI outputs for real time multi-viewing. They are reliable video devices splitting four SD-SDI or HD-SDI or 3G-SDI video source to SD-SDI or HD-SDI or 3G-SDI display at the same time and takes four input then re-clocks and equalizes the signal and distributes it to four identical outputs.
2. Features
|
ND1102BD |
l SDI Standard: HD-SDI, SD-SDI l Data Rates: 270Mbps/1.485 Gbps/2.97Gbps l Signal Type: SMPTE 292M, SMPTE 259M l Two separately buffered outputs l Cable equalization (Beldon 1694A) retiming and signal l Re-clocking function capability – unlimited repeater connection l Dual color LED indication of nput locik and rate l Pass all ancillary data
|
3．Application Diagram
4. Dimensions
5. Specifications
| Model | ND1404G | |
| Video In | 4 piece one SDI port | |
| Video Out | 4 piece one SDI port | |
| Input Signal Type | SD-SDI (270Mbps), HD-SDI (1.485Gbps), 3G-SDI(2.97Gbps) | |
| Support Input Format |
SD-SDI: 480i, 576i HD-SDI: 720p24/25/30/50/59.94/60 all frame rate; 1080i all frame rate, 1035i all frame rate; 1080p all frame rate 3G-SDI: 1080p all frame rate |
|
| SDI Signal Range | 0.8V p-p | |
| SDI Impedance | 75 ohms | |
| SDI Coupling Type | AC Coupling | |
| Input Power | DC 12V/250mA | |
| Max. Distance |
Belden 1694A SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft ; 3G-SDI 140m / 450ft |
|
| Re-clocking | Auto Support 270Mbps/1.485Gbps/2.97Gbps | |
| Power Supply | 5V~24V DC | |
| Connection Port | BNC-F (75Ω) | |
| Operating Temperature | -10°C ~ 60°C / 14°F ~ 140°F | |
| Storage Temperature | -30°C ~ 70°C / -22°F ~158°F | |
| Dimension | 92 x 119 x 36 mm /3.62x 2.56 x 1.10 inches | |
| Weight | 220g | |
6. Order Information
| Part No | Description of product | Unit |
| ND1404G | 4X1:1SD/HD/3G -SDI Repeaters | pcs |
