Model: | ND1103CATX | Power Supply: | DC12V/1A |
---|---|---|---|
Power Consumption: | 2.5W (Tx And Rx) | Operating Temperature: | -10°C ~ 60°C / 14°F ~ 140°F |
Dimensions: | 98 X 65 X 28mm / 3.85x 2.55 X 1.1 Inches | Weight: | 240 G(Tx And Rx) |

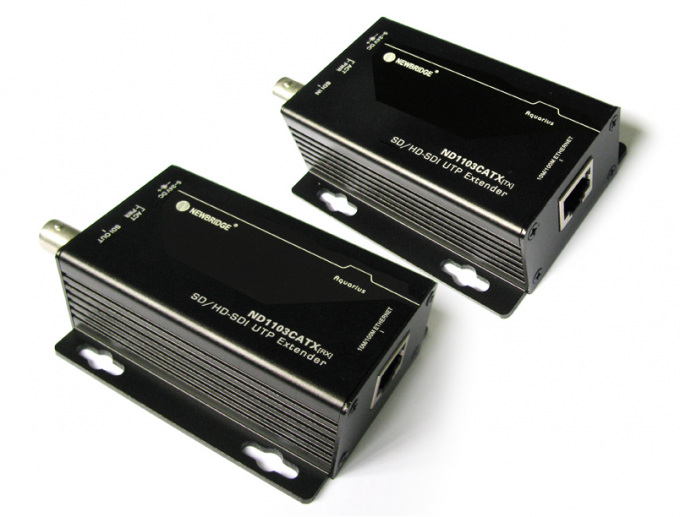

SD/HD-SDI Video Extender over Ethernet UTP CAT5/6 Kit
1. Overview
Newbridge® ND1103CATX allows HD-SDI signal to be transmitted up to 60m / 200ft via CAT5/CAT6 cable in a point-to-point configuration. The SDI-UTP Extender supports video bandwidth up to 1.485 Gbps uncompressed, un-encrypted digital video (optionally including embedded Audio and/or Time Code) , widely applied to television facilities and professional video equipment.
2.Features
ND1103CATX |
l SDI Standard: HD-SDI, SD-SDI l Up to 50m / 160ft via CAT5e cable l Up to 60m / 200ft via CAT6 cable l Supports SDI-SMPTE 259M-C (270Mbps); l HD-SDI-SMPTE 292M (1.485, 1.485 / 1.001 Gbps) l LED diagnostics: sync, SDI auto-detection
|
3. Dimensions

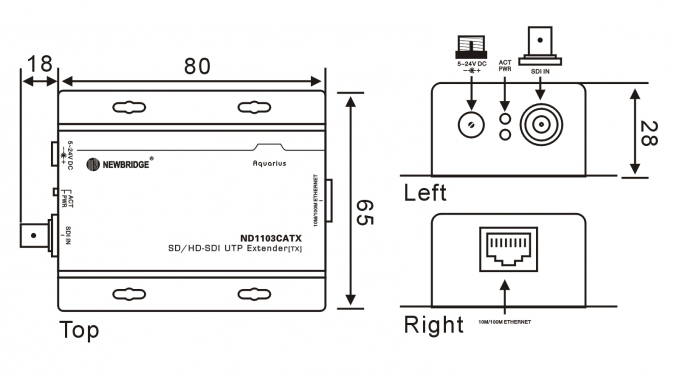

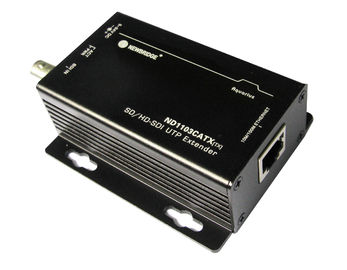

ND1103CATX-TX

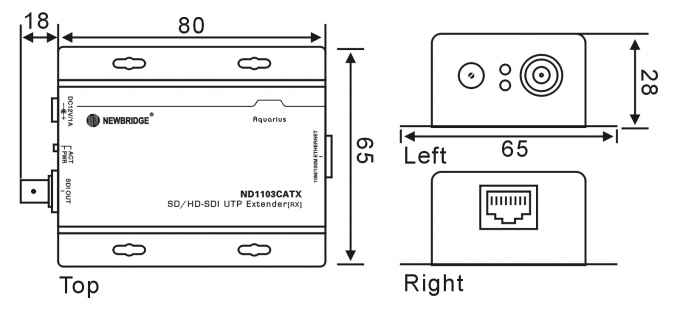

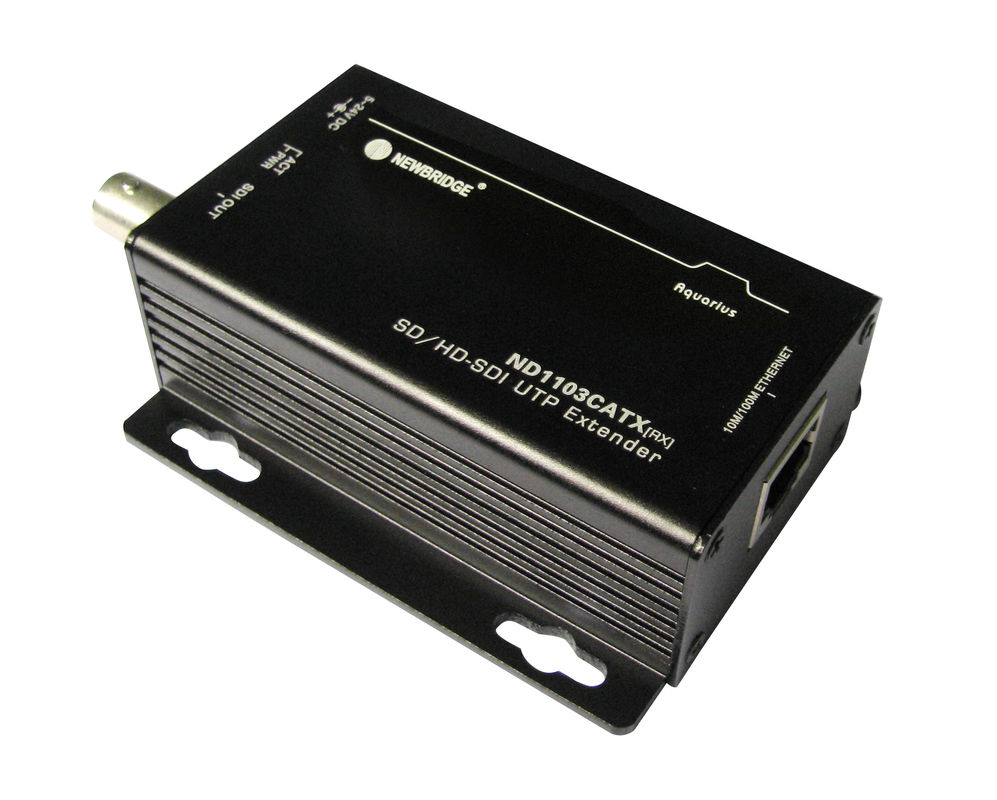

ND1103CATX-RX
4. Specifications
Model | ND1103CTAX | |
Type | Transmitter | Receiver |
Standard Supported | SMPTE 259M (270Mb/s), SMPTE 292M | |
Speed | 270Mb/s, 1.485Gb/s (automatic selection) | |
Support Input Format |
SD: 525i @ 59.94Hz, 625i @ 50Hz HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz 720p @ 50Hz / 59.94Hz / 60Hz 1080i @ 50Hz / 59.94Hz / 60Hz 1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz @24 Hz, 1080p @25 Hz, 1080p @29.97 Hz, 1080p @30Hz |
|
Indicators |
Power on (on both end) Sync detection (on both end) Link between the two units working (on both end) |
|
Connectors |
1x BNC 75 ohm female 1x RJ45 of CAT5e/6 unshielded or shielded twisted pair 1x power plug, 2.1mm |
|
Maximum Distance |
All resolutions CAT5 UTP/STP: 50m / 160ft CAT6 UTP/STP: 60m / 200ft |
|
Power Supply | DC12V/1A | |
Power Consumption | 2.5W (Tx and Rx) | |
Operating Temperature | -10°C ~ 60°C / 14°F ~ 140°F | |
Storage Temperature | -30°C ~ 70°C / -22°F ~158°F | |
Dimensions | 98 x 65 x 28mm / 3.85x 2.55 x 1.1 inches | |
Weight | 240 g(Tx and Rx) |
5. Order Information
Part No | Description of product | Unit |
ND1103CTAX-Tx | SD/HD-SDI Video Extender over CAT5/ 6 Kit Transmitter; | pcs |
ND1103CTAX-Rx | SD/HD-SDI Video Extender over CAT5/ 6 Kit Receiver | pcs |
