| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | FCC,CE |
| Model Number: | ND-920SW-20-4 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | According to the different products , the monthly output is different |
| Product Name: | 1000M Media Converter | Storage Temperature:: | -40℃~70℃ |
|---|---|---|---|
| Wavelength:: | 1310nm | Fiber Connector:: | SC,ST,FC |
| Input Voltage:: | DC 5V |

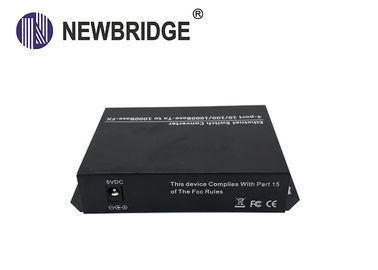

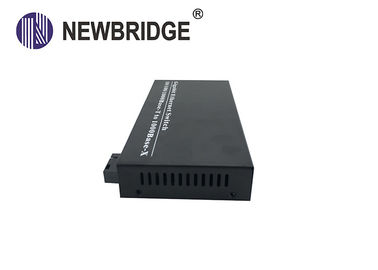

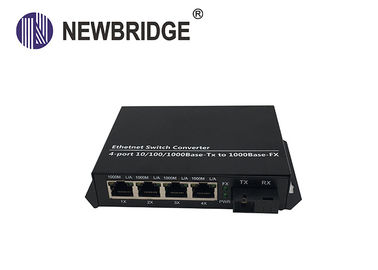

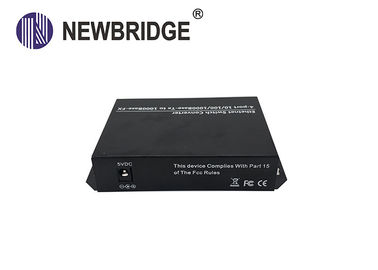

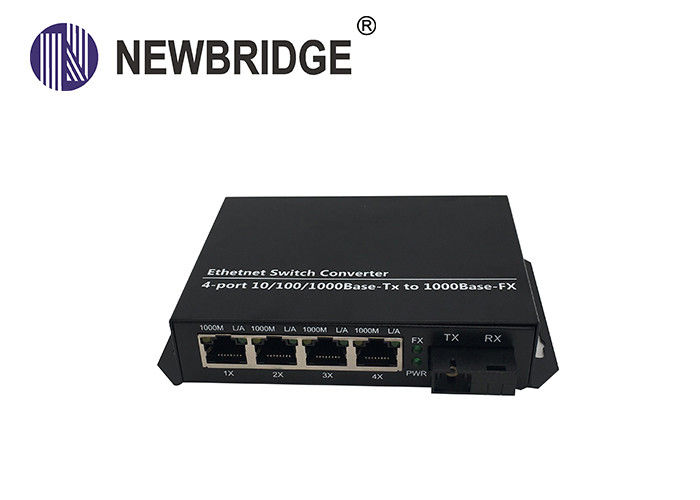

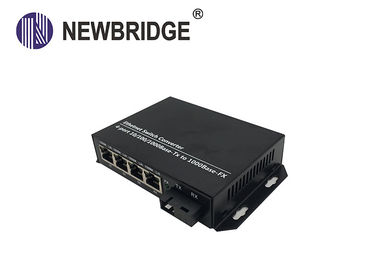

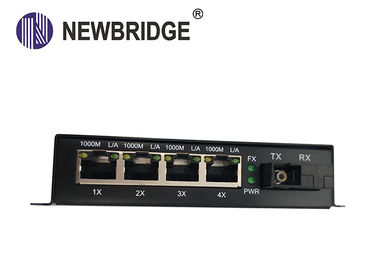

AC 240V Single Mode dual Fiber To Ethernet Media Converter 2 4 Port 10 100 1000M RJ45
Description
Fiber media converter, or fiber converter, media converter, or Ethernet fiber converter, is designed to extend the copper limit of 100 meters and gets Ethernet connected to 120km max on fiber optics Fiber media converter is a simple networking device that connects two dissimilar media types such as copper twisted pair and fiber optics
Feature
1. Wavelength Division Multiplexing (WDM), Tx and Rx on 1 fiber
2. 1000BASE-FX FIBER to 10/100/1000BASE-T COPPER Ethernet conversion
3. 1600byte super data packet transmission
4. Full duplex-flow control, Half duplex-back pressure
5. Link fault pass through (LFPT)
6. Full- positioned LEDs to indicate power and network status
Specification
2 +4 Port 10/100/1000M RJ45 port media converter
♦2 port 10/100/1000M fiber ,4 port 10/100/1000M RJ45 ,
♦Dual fiber single mode 1310TX/1550RX,SC,0~20KM,stand alone type,
♦External power supply,DC/5V,AC/100-240V,
♦Through the optical fiber cascaded multiple lans
Order info
| Part No | Description of product | Unit |
| ND-920SW-20-4 | 10M/100/1000M bps, Single mode,1310nm,0-20KM,SC | 1PC |
