| SDI Standards: | SD-SDI, HD-SDI | Supported Protocols: | SMPTE 259M SMPTE 292M SMPTE 344M |
|---|---|---|---|
| Output Impedance: | 75 Ohms | SDI Signal Type: | SMPTE-292M, SMPTE-259M |
| Relative Humidity: | 20~90% RH (no Condensation) | Data Rates: | 270 / 1483 / 1485 Mbps |

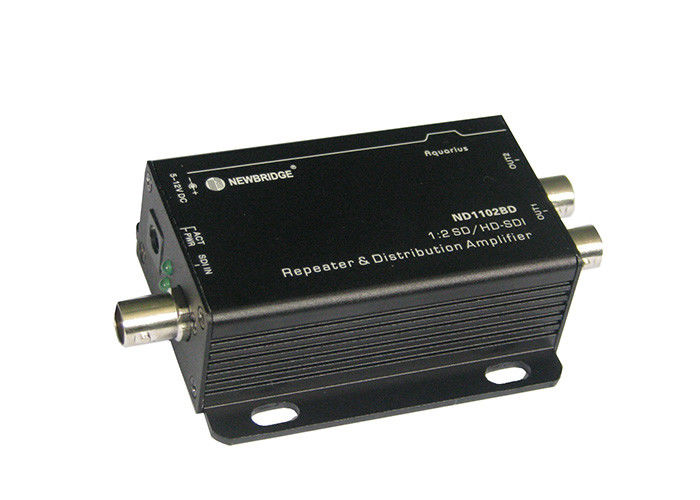

1X2 Coaxial Splitter & Repeater support 120m tranmsit distance
Features
◆SDI Standard: HD-SDI, SD-SDI
◆Data Rates: 270Mbps/1.485 GbpsSignal Type: SMPTE 292M, SMPTE 259M
◆Two separately buffered outputs
◆Cable equalization (Beldon 1694A) retiming and signalRe-clocking function capability – unlimited repeater connection
◆With LED indication of input lock and rate
◆Pass all ancillary data
◆5V~12V DC
Application Diagram
Dimensions
Specifications
| Model |
ND1102BD HD-SDE-122R |
| Re-clocking Function | Yes |
| SDI Standards | SD-SDI, HD-SDI |
| HD/SD-SDI Detection | Auto |
| Supported Protocols | SMPTE 259M SMPTE 292M SMPTE 344M |
| Data Rates | 270 / 1483 / 1485 Mbps |
| V ideo Support |
SD: 525i @ 59.94Hz, 625i @ 50Hz HD: 720p @ 23.98/24Hz/25Hz/29.97Hz/30Hz/50Hz / 59.94Hz / 60Hz 1080i @ 50Hz / 59.94Hz / 60Hz 1080p @23.98Hz/24Hz/25Hz/29.97Hz/30Hz |
| SDI Signal Type | SMPTE-292M, SMPTE-259M |
| Output Impedance | 75 ohms |
|
Max. Distance |
Belden 1694A SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft |
| Audio Support | Yes |
| Input | 1x BNC [SDI] |
| Output | 2x BNC [SDI] |
| BNC Connector | 75 ohms inter-locked socket |
| Power Consumption | 2~4 Watts |
| Relative Humidity | 20~90% RH (no condensation) |
| Dimension | 80*61*28mm |
| Weight | 120g |
Order Information
| Part No | Description of product | Unit |
| ND1120BD | 1X2 SD/HD -SDI Repeaters | pcs |
