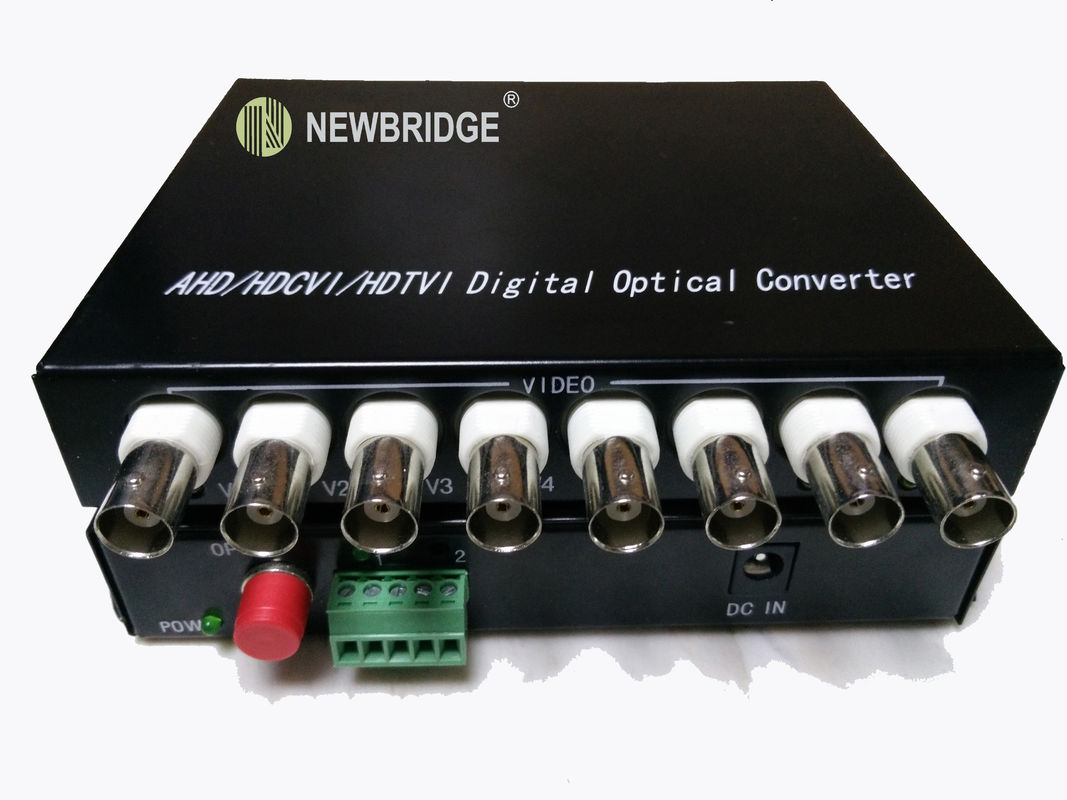

8 Channel BNC HD TVI / CVI / AHD Transmitter Receiver 1310nm&1550nm 20KM 8CH positive video+1CH reversed data

8 Channel BNC HD TVI / CVI / AHD Transmitter Receiver 1310nm&1550nm 20KM 8CH positive video+1CH reversed data

8 Channel BNC HD TVI / CVI / AHD Transmitter Receiver 1310nm&1550nm 20KM 8CH positive video+1CH reversed data

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: NEWBRIDGE
Certification: FCC,CE
Model Number: ND-AC8V1D-S20

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: packing can be done by customer's requested, usually used in carton
Delivery Time: According to the quantiy and stocking , 3-4 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: According to the different products , the monthly output is different
Contact Now
Detailed Product Description
Distance: 20KM Fiber Type: Single Fiber Single Mode
Fiber Port: FC Wavlength: TX1310nm/RX1550nm
Electric Port: 16 Channel BNC Power: DC5V 2A

8 Channel BNC HD TVI / CVI / AHD Transmitter Receiver 1310nm&1550nm 20KM 8CH positive video+1CH reversed data



Wavelength1310nm&1550nmOutput Power-8~3dBmOptic fiber50 125u multimode,62 5 125u multimode,9 125u single modeRx



Feature

CVI/TVI/AHD TO Fiber Converter can simultaneously transmit 1-16 channels CVI/TVI/AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment . Compatible with720P/ 1280H/25f, 720P/1280H/30f, 720P/1280H/50f, 720P/1280H/60f. Lossless non-compression real time transmission.





Specification

Opitcal:

Wavelength 1310nm&1550nm
Output Power -8~3dBm
Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity -25dBm
Optical connector FC,ST,SC (optional)
Distance 0~550M (MM) / 0~20KM (SM)

Video:

Number of Channels 1/2/4/8/16
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 45MHz
Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°
Connector BNC

Other

Power DC5V 2A
Power Consumption ≤6W
Temperature -40ºC ~75ºC
Humidity 10%~90% RH
Unit Weight
Dimension
Installation Wall mount
MTBF ≥ 100000Hours





Connection diagram

8 Channel BNC HD TVI / CVI / AHD Transmitter Receiver 1310nm&1550nm 20KM 8CH positive video+1CH reversed data





Order information

Part No Description of product Unit
ND-AC8V1D-S20 8ch video+1ch return data,20KM,FC interface pcs
