| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | FCC,CE |
| Model Number: | ND-5101P-HD-S1-2 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | 3-4 working days in stock |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | 1000000PCS |
| Support: | HD-TVI, HD-CVI And HD-AHD Signal | Resolution: | 720P , 1080P |
|---|---|---|---|
| Port: | 1 Channel Passive HD Balun | Power: | DC 5V/2A |
| Maximum Transmission Distance: | 20km | Video Bandwidth: | 50MHz |

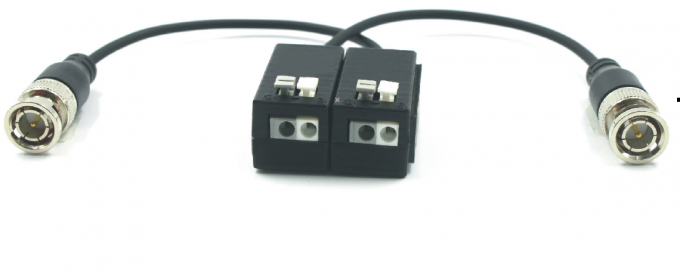

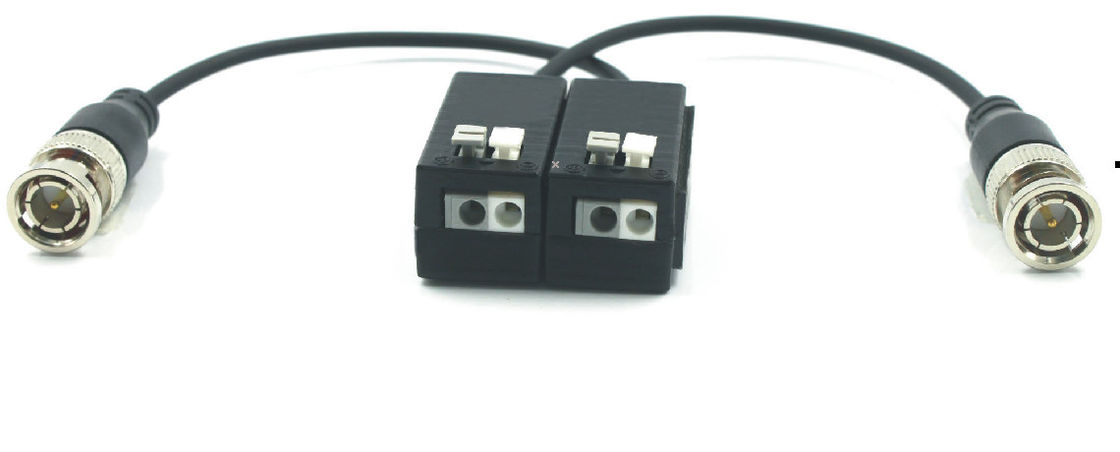

ND-5101P-HD-S1-2 Push-terminal,1 channel passive HD Balun for TVI/CVI/AHD Cameras
1. Overview
Newbridge® ND-5101P-HD-S1/ND-5101P-HD-S2 This new designed balun is compatible with HDCVI, HDTVI and AHD signal. With connecting channel which can connect two or more baluns together and with the upside push terminal for easier installation.
2．Features
|
|
l Compatible with HD-TVI, HD-CVI and HD-AHD signal l Up to 400m for HD-CVI 720P signal l Up to 250m for HD-CVI 1080P signal l Up to 250m for HD-TVI 720P signal l Up to 250m for HD-TVI 1080P signal l Up to 350m for AHD 720P signal |

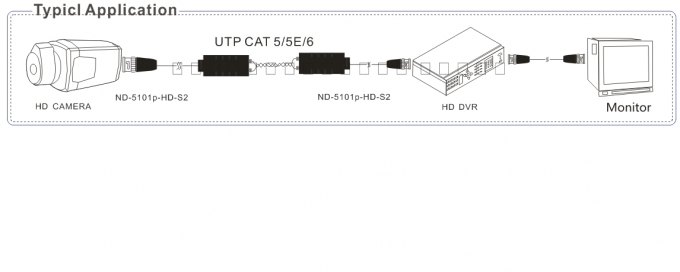

3．Application Diagram
4. Order Information
| Part No | Description of product | Unit |
| ND-5101P-HD-S1 | 1 channel passive HD Balun for TVI/CVI/AHD Cameras | Pair/Pc |
| ND-5101P-HD-S2 | 1 channel passive HD Balun for TVI/CVI/AHD Cameras | Pair/Pc |
