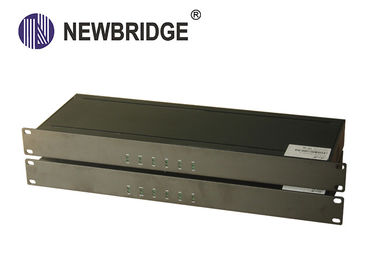

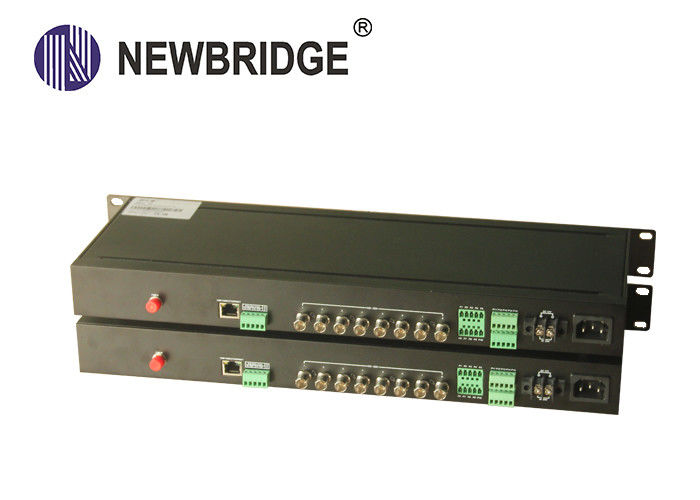

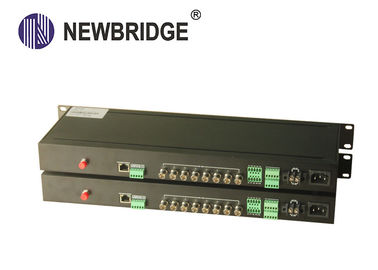

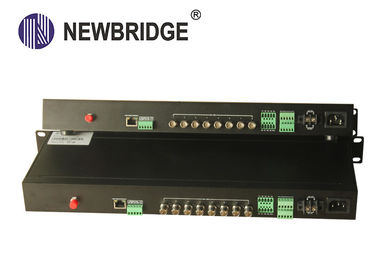

2 Channel Bi - Directional HD SDI Surge Protector SM 1490/1550nm Wavelength

2 Channel Bi - Directional HD SDI Surge Protector SM 1490/1550nm Wavelength

    • 2 Channel Bi - Directional HD SDI Surge Protector SM 1490/1550nm Wavelength
    • 2 Channel Bi - Directional HD SDI Surge Protector SM 1490/1550nm Wavelength
    • 2 Channel Bi - Directional HD SDI Surge Protector SM 1490/1550nm Wavelength
    • 2 Channel Bi - Directional HD SDI Surge Protector SM 1490/1550nm Wavelength
    • 2 Channel Bi - Directional HD SDI Surge Protector SM 1490/1550nm Wavelength
  • 2 Channel Bi - Directional HD SDI Surge Protector SM 1490/1550nm Wavelength

    Product Details:

    Place of Origin: SHENZHEN,CHINA
    Brand Name: NEWBRIDGE
    Certification: CE,FCC
    Model Number: ND8018D-S20

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Pair
    Price: Negotiation
    Packaging Details: packing can be done by customer's requested, usually used in carton
    Delivery Time: According to the quantiy and stocking , 7-15 working days after payment
    Payment Terms: T/T , Western Union
    Supply Ability: 5000pair per month
    Contact Now
    Detailed Product Description
    MOQ: 1 Pair Mode: Single Mode
    Fiber: Single Fiber Coding Time Delay: 50ms
    Channel: 8ch Wavelength: 1490/1550nm
    Product Name: 8ch HD-SDI Fiber Optical Converter

    8Ch Video & 2 Channel Bi-Directional Data to Fiber SM 20km hd sdi fiber video converter



    Features

    • 8-ch unidirectional HD-SDI video converter
    • Range from 19.4Mb/s to 1.485Gb/s
    • Support all SMPTE 295M standard, 143Mb/s - 360Mb/s
    • Support SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and DVB-ASI (270Mb/s) standard
    • Output wavelength 149nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
    • 150m automatic cable equalization, all the 1.485 Gb/s rate below(Belden 1694A)
    • Optional network management system
    • LED status indicators monitor the critical parameters
    • Optional network system
    • Support hot swap
    • Support stand-alone, 1U rack mount and 4U rack mount

    Applications

    • Remote OB Van/Truck Video Feeds
    • Broadcast Studio Camera Feeds
    • Long-haul Signal Transport
    • TV station/video conference
    • Lecture Hall Projector Connectivity
    • Medical/Surgical Room Broadcast
    • Building to Building video conference calli
      Serial TV BNC Input
      TV signal standard SMPTE 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s - 1.485Gb/s)
      Input channel 8
      Reflection loss >15DB
      Equilibrium 0-150m @ 1.485Gb/s
      Connector 75Ω BNC
      Serial TV BNC Output (EO/OE)
      Output channels 8
      Signal level 800mV nominal
      Rise/fall time 200Ps nominal
      Overshoot <10% amplitude
      Reflection loss > 15dB
      Jitter < 0.2UI
      Connector 75Ω BNC
      Power and environmental indicator
      Operating temperature -45~+50℃
      Pressure 220VAC to 12VDC/1A
      Power 12W
      EMI/RFI FCC Part 15 Class A, EU EMC standard
      Average time trouble-free >100000 hours





    Order infomation

    Model describe Company
    ND8018D-S20 8CH HD-SDI video converter 1pair
