| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | CE,FCC |
| Model Number: | NDA320L |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | According to the different products , the monthly output is different |
| Power: | DC 12V 2A | Power Dissipation: | 6W |
|---|---|---|---|
| Temperature Operating: | 0℃ ~ 80℃ | Relative Humidity: | 20 ~90%RH |
| Coding Time Delay: | 50ms | Port: | SDI |

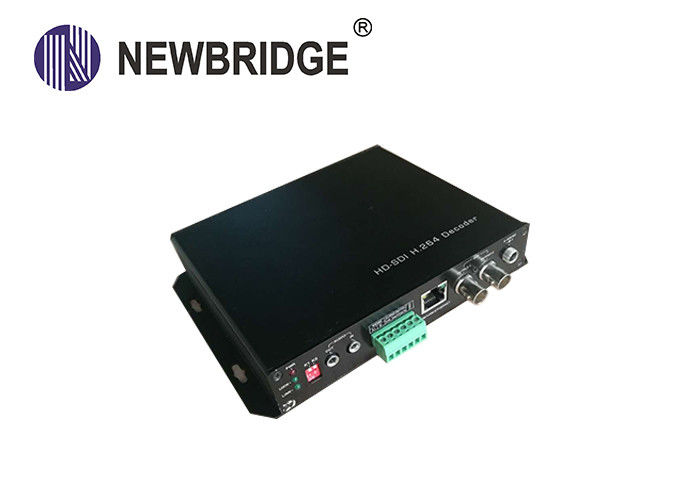

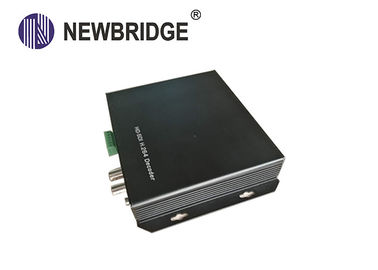

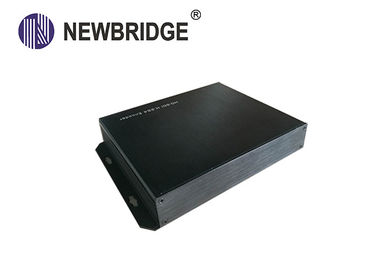

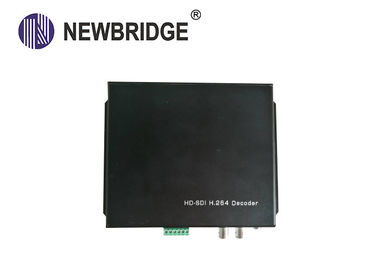

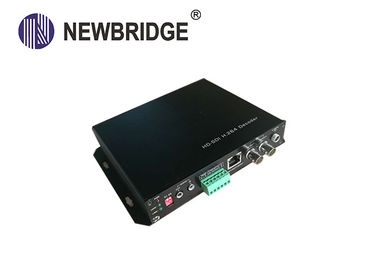

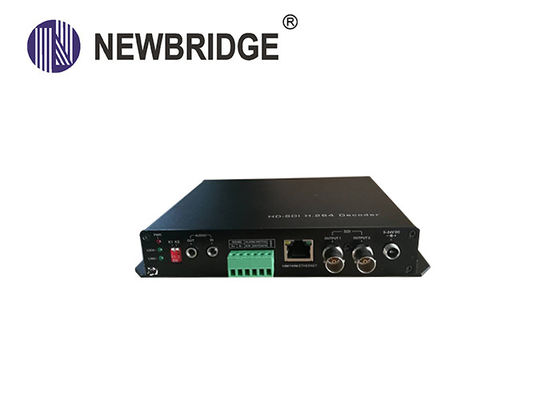

HD SDI Surge Protector DC 12V High definition decoding
NDA320L makes the perfect combination of HDcctv SDI's non compression and no delay performance and IP monitoring super long distance and video streaming. It is widely applied in many areas, such as HD video surveillance, HDcctv system and remote editing of media programs.
Feature
SD/HD-SDI interface support, supporting AES/EBU embedded audio.
Support many formats, such as 1080p30/25/24, 1080i, 1080i50, 720p60/50, 480i/p, 576i/p, etc.
Intelligent network delay control, decoding delay of typical network environment below 150ms.
Support two-way voice dialogue, RS-485 signaling transmission and alarm transmission.
Compliant RTP/RTSP media transmission protocols, compatible with most decode products, streaming media servers and IP monitoring and management platforms on the market.
A management control protocol that meets the ONVIF 1.1/2.0 specification and can be automatically fused with the IP monitoring system.
Specification
| model | NDA310L | NDA320L | |
| port | input | 1*BNC SDI | --- |
| output | 1*BNC SDI | 2*BNC SDI | |
| Analog audio input | 1*Industrial wiring terminal. | ||
| Analog audio output | 1*Industrial wiring terminal. | ||
| Alarm signal | 1*Industrial wiring terminal. | ||
| RS-485 | 1*Industrial wiring terminal. | ||
| internet | 1*RJ-45 | ||
| power | DC 12V, 2A | ||
| signal | SDI signal | 0.8Vp-p | |
| SDI impedance | 75Ω | ||
| SDI Coupling type | AC | ||
| Signal types | SD-SDI(270Mbps),HD-SDI(1.485Gbps), | ||
| Supported formats | 1080p24/25/30,1080i60/50,720p60/50,480i/p,576i/p | ||
|
codec |
video compress standard | H.264 high profile | |
| audio compress standard | AAC-LC | ||
| Coding time delay | ≤50ms | ||
| Video encoding rate | 512Kbps ~ 30Mbps | ||
| Audio encoding rate | 64Kbps | ||
| transfer | Media transfer protocol | RTP/RTSP | |
| Signaling protocol | TCP | ||
| NMP | HTTP | ||
| manage | management interface | Web | |
| remote management | support | ||
| Remote firmware upgrade | support | ||
|
operating environment |
temperature operating |
0℃ ~ 80℃ | |
| relative humidity | 20 ~90%RH | ||
| power dissipation | 6W | ||
Connection diagram
Order infomation
| Model | describe | Company |
| NDA320L | SD/HD-SDI Decoder | 1pc |
