| Size: | 104×98×28mm | InputInterface: | 1xBNCSDI |
|---|---|---|---|
| PowerSupply: | 5V~12V DC | PowerConsumption: | 3~5 Watts |
| StorageTemperature: | -30°C~70°C | SDIImpedance: | 75ohms |

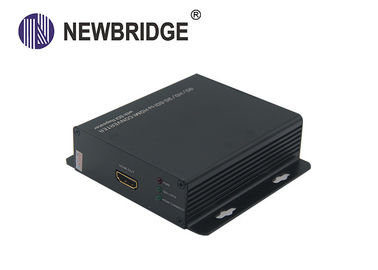

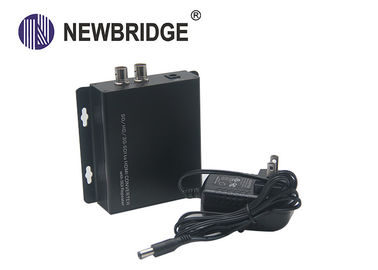

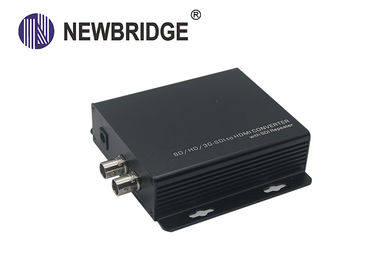

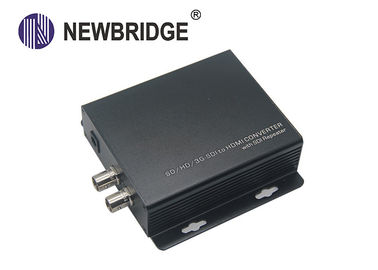

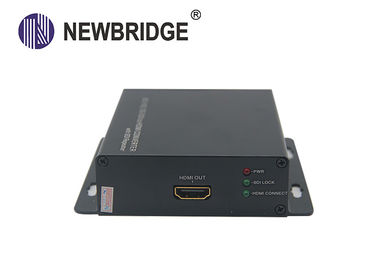

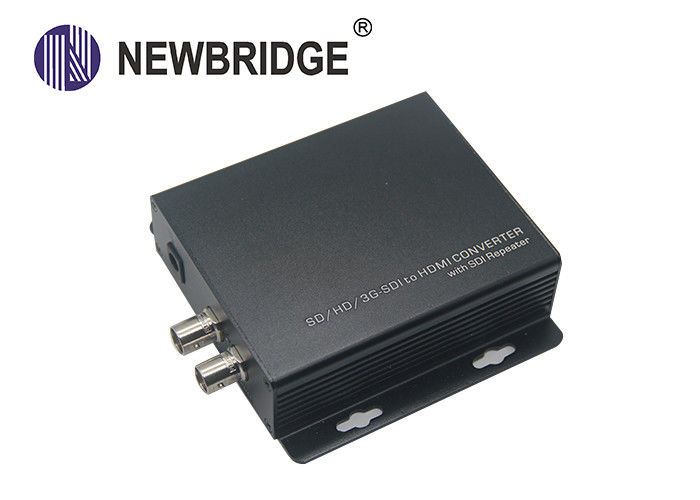

3G-SDI Video Audio Coaxial Adapter 1080P SDI to HDMI Converter HD/SD/3G-SDI NEW
1. Overview
Newbridge® ND6210B converter is an equipment which is exclusive using in converting single channel SDI signal to HDMI signal . It integrates SDI transmitter and HDMI demodulator which conveniently converts SDI signal to HDMI signal, at the mean time, it will separate and convert SDI signal ‘s audio signal ,and then it will embed it to HDMI signal synchronously to realize the video and audio transmitting synchronously.
The device is designed to be able to controlled switch ,User can choose HDMI output or DVI output by it.in the mean time,this equipment has one channel loop back function in SDI signal output,User can monitoring expediently in this locality.
2. Features
|
ND6210B |
l Support SDI input format: 480i, 576i, 720p30/50/60, 1080p24/25/30, 1080i 50/60, 1080p50/60.
l Automatically detect the HDMI EDID information adaptive HDMI best mode |
3．Application Diagram
4. Dimensions
5. Specifications
| Model | NB6210B |
| Input Interface Type | 1x BNC SDI |
| Input Signal | SD-SDI (270Mbps), HD-SDI (1.485Gbps), 3G-SDI (2.97Gbps) |
| Support Input Format |
SD: 525i @ 59.94Hz, 625i @ 50Hz HD: 720p @ 23.98/24Hz/25Hz/29.97Hz/30Hz/50Hz / 60Hz 1080i @ 50Hz / 59.94Hz / 60Hz 1080p @23.98Hz/24Hz/25Hz/29.97Hz/30Hz 3G:1080p @ 50Hz / 60Hz |
| SDI Signal Range | 0.8V p-p |
| SDI Impedance | 75 ohms |
| SDI Coupling Type | AC Coupling |
| SDI Loop Out Interface | 1x BNC SDI |
| HDMI/DVI Output Interface | 1x HDMI |
| Frequency Bandwidth | 165MHz/ up to standard with HDCP :HDMI 1.3 |
| Power Supply | 5~12DC |
| Power Consumption | 3~5 Watts |
| Operating Temperature | -10°C ~ 60°C / 14°F ~ 140°F |
| Storage Temperature | -30°C ~ 70°C / -22°F ~158°F |
| Relative Humidity | 20~90% RH (Non-condensation) |
| Dimension | 104x 98x 28mm |
| Weight | 280g |
6. Order Information
| Part No | Description of product | Unit |
| ND6210B | SD/HD/3G-SDI to HDMI Converter | pcs |
