| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | FCC,CE |
| Model Number: | ND-920SW-20-3 |
| Minimum Order Quantity: | 1pair |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | 5-7 working day in stock |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | 1500pcs per Month |
| Tandard: | IEEE802.3,),IEEE802.3u,IEEE802.3x,IEEE802.1q,IEEE802.1p QoS, IEEE802.1d | Fiber Type: | Single Fiber Single Mode |
|---|---|---|---|
| Storage Humidity: | 5%~90% | Fiber Connector: | SC Standard, ST/FC Optional |
| Storage Temperature: | -40°C~70°C | Operating Temperature: | 0°C~50°C |

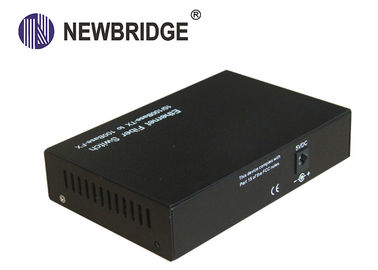

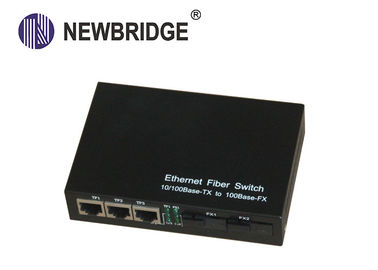

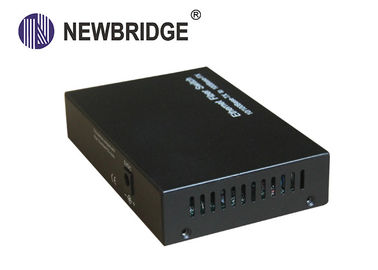

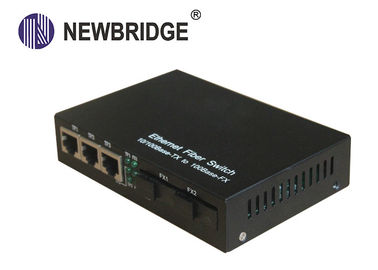

1310nm 20km 10M /1000Mbps Fiber To Ethernet Media Converter Switch Single Fiber Single Mode
Fiber media converter, or fiber converter, media converter, or Ethernet fiber converter, is designed to extend the copper limit of 100 meters and gets Ethernet connected to 120km max on fiber optics Fiber media converter is a simple networking device that connects two dissimilar media types such as copper twisted pair and fiber optics
Feature
♦ 10/1000M fiber IP Switch

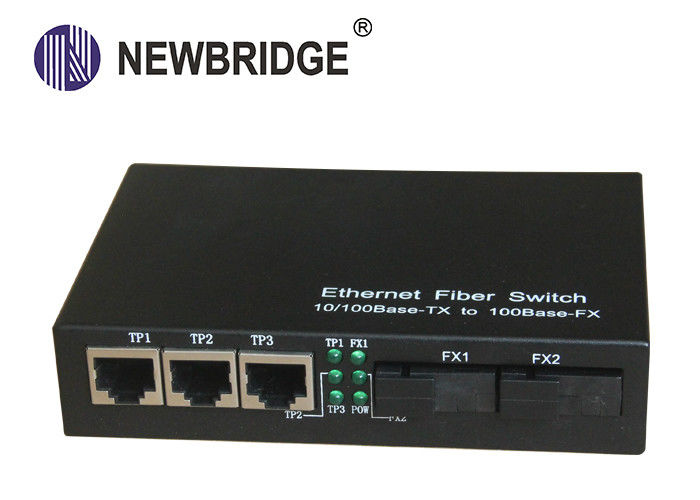

♦ 2* 10/1000M -FX ,3 *10/1000M Base-T ,
♦ Single fiber single mode 1310TX/1550RX,SC,0~20KM,stand alone type,
♦ External power supply,DC/12V,AC/100-240V,
♦ Through the optical fiber cascaded multiple lans
Specification
| Standard | IEEE802.3 (10BASE-T),IEEE802.3u 100BASE-TX/FX (Fast-Ethernet),IEEE802.3x (Flow Control),IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| 10/100 BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
| 100BASE-FX | 50/125umfiber cable (5km), 62.5/125um multimode fiber cable (2km) 9/125um singlemode fiber cable (20/40/60/80/100km) |
| Conversion Mode / Delay Time | Store-and-Forward < 10us, straight-through<0.9us |
| Flow control | Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port | Auto-MDI/MDIX |
| Fiber Connector | SC standard, ST/FC optional |
| Wavelength | 1310/1550nm |
| Input Voltage | ,DC/12V,AC/100-240V |
| Power Consumption | <2.5W |
| MTBF | 50,000 hours |
| BER | <1/1000000000 |
| MAC Address Table | 1K |
| Buffer Size | 1M |
| Operating Temperature | 0°C~50°C |
| Storage Temperature | -40°C~70°C |
| Storage Humidity | 5%~90% non-condescending |
Order info
| Part No | Description of product | Unit |
| ND-920SW-20-3 | 10M/1000M bps, Single mode Single fiber,1310nm,0-20KM,SC | pair |
