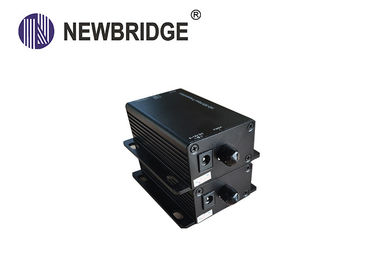

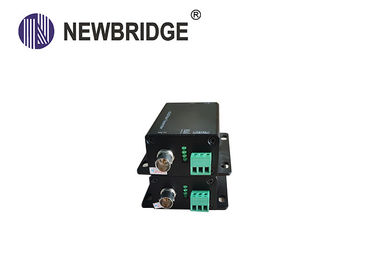

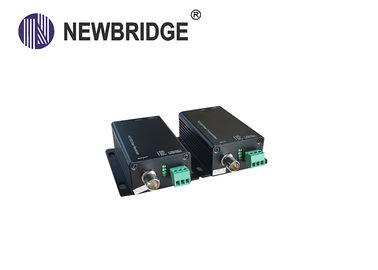

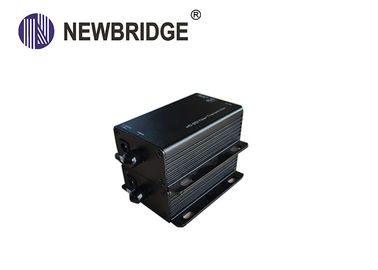

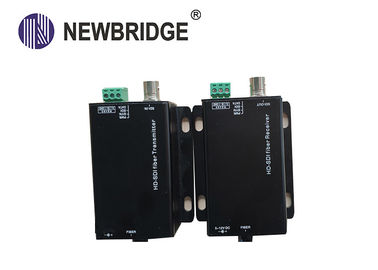

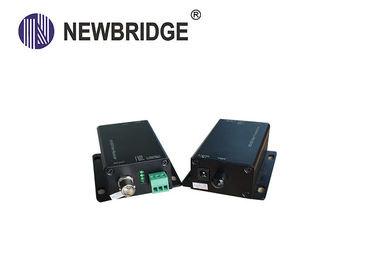

Mini Type HD SDI Converter Optical Transceiver With Single Fiber single mode

Mini Type HD SDI Converter Optical Transceiver With Single Fiber single mode

    • Mini Type HD SDI Converter Optical Transceiver With Single Fiber single mode
    • Mini Type HD SDI Converter Optical Transceiver With Single Fiber single mode
    • Mini Type HD SDI Converter Optical Transceiver With Single Fiber single mode
    • Mini Type HD SDI Converter Optical Transceiver With Single Fiber single mode
    • Mini Type HD SDI Converter Optical Transceiver With Single Fiber single mode
    • Mini Type HD SDI Converter Optical Transceiver With Single Fiber single mode
  • Mini Type HD SDI Converter Optical Transceiver With Single Fiber single mode

    Product Details:

    Place of Origin: SHENZHEN,CHINA
    Brand Name: NEWBRIDGE
    Certification: FCC,CE
    Model Number: ND-8010HDL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: Negotiation
    Packaging Details: packing can be done by customer's requested, usually used in carton
    Delivery Time: According to the quantiy and stocking , 3-4 working days after payment
    Payment Terms: T/T , Western Union
    Supply Ability: According to the different products , the monthly output is different
    Contact Now
    Detailed Product Description
    Model: ND8010HDL Signal Type: SD-SDI(270Mbps)/ HD-SDI(1.485Gbps)
    Operating Temperature: 0°C ~ 60°C / 32°F ~ 140°F Power Supply: 5~24DC
    Storage Temperature: -30°C ~ 70°C / -22°F ~158°F Dimension: 110x 48 X 25 Mm / 4.33 X 1.89 X 0.98 Inches
    Highlight:

    hdmi to sdi converter

    ,

    hdmi to hd sdi converter

    Mini Type HD SDI Converter Optical Transceiver With Single Fiber single mode



    1. Overview

    Newbridge® ND8010HDL HD-SDI Optical Transceiver is a mini type HD-SDI optical transceiver .It is a perfect and economic transmission device to transmit HD/HD-SDI video, embedded audio and RS485 data via fiber-optic.

    Transmitter is used as sending end ,Receiver is used as receiving end. it support to SMPTE292M, SMPTE259M standard, as well as DVB-ASI (EN50083-9) digital TV signal format.



    Mini Type HD SDI Converter Optical Transceiver With Single Fiber single mode

    ND8010HDL

    l Support 1channel HD-SDI video embedded audio signal via fiber

    l SD,HD auto-detection, supported transmission rate from 270M bit/s to 1.485G bit/s

    l Transmission distance is from 0km to 80KM via multimode fiber or single mode fiber.

    l Support SMPTE 259M (1.485Gbps),SMPTE 259M (270Mbps),and DVB-ASI

    l Support plug and play function

    • Operation status indication by LED



    2.Application Diagram

    Mini Type HD SDI Converter Optical Transceiver With Single Fiber single mode





    3. Specifications



    Model HD-SDI Optical Transmitter & receiver
    Quantity/Type Single Mode, Single Fiber
    Max. Distance 0m-20Km (40km/60km optional)
    Connector FC
    Wave Length 1310nm/1550nm
    Transmitted power -10dbm~-3dbm
    Maximum Receiving Sensitivity <-34dbm
    Signal Type SD-SDI(270Mbps)/ HD-SDI(1.485Gbps)
    Support Input Format

    SD: 525i @ 59.94Hz, 625i @ 50Hz

    HD: 720p @ 25Hz / 29.97Hz / 30Hz

    720p @ 50Hz / 59.94Hz / 60Hz

    1080i @ 50Hz / 59.94Hz / 60Hz

    1080p @23.98Hz/24Hz/25Hz/29Hz/3 0Hz

    Video Standard SMPTE 292M and SMPTE 259M
    DATA comm. method RS-485/Half duplex
    Power Supply 5~24DC
    Power Consumption 3~5 Watts
    Operating Temperature 0°C ~ 60°C / 32°F ~ 140°F
    Storage Temperature -30°C ~ 70°C / -22°F ~158°F
    Relative Humidity 20~90% RH (Non-condensation)
    Dimension 110x 48 x 25 mm / 4.33 x 1.89 x 0.98 inches
    Weight 220g (Tx and Rx)





    4. Order Information



    Part No Description of product Unit
    ND-8010HDL-Tx HD-SDI Optical-Transmitter pcs
    ND-8010HDL-Rx HD-SDI Optical-Receiver pcs
