| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | FCC,CE |
| Model Number: | ND1P802F |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | 3000pcs per month |
| Power Adapter Voltage: | AC 110V-240V | POE Ethernet Port: | 1～8 Port : 10/100Mbps |
|---|---|---|---|
| Transmission Medium: | Cat5/5e/6 Standard Network Cable | Working Temperature: | 0℃~55℃ |
| Dimension (L×W×H): | 202mm*140mm*45mm | PoE Standard: | IEEE 802.3af/at |
| Highlight: | power over ethernet switch,power over ethernet switch 4 port |
||

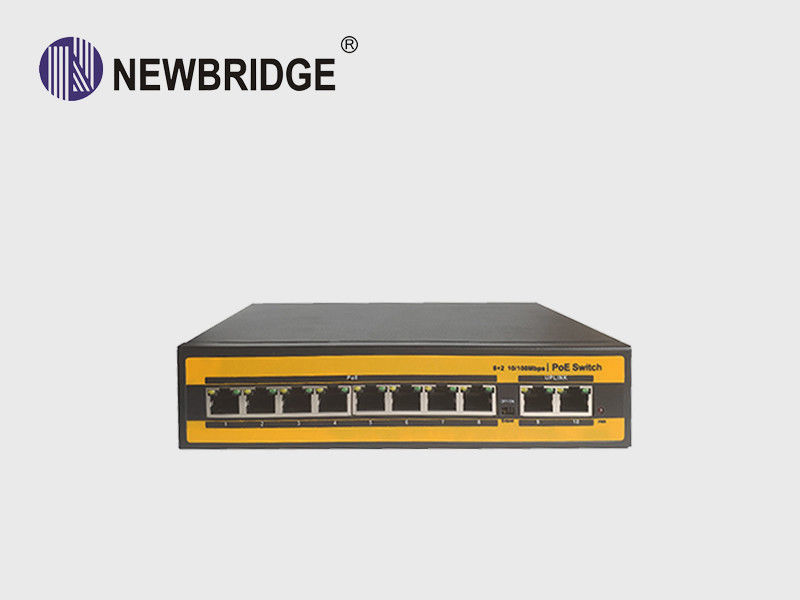

100M 8 Port POE Switch + 2 Port 100M Network For IP Camera/Wireless AP/CCTV Camera System
1. Overview
Newbridge® The switch is a compact 8+2 port PoE switch,with 8 10/100 Mbps PoE Ports, and 2 10/100Mbps Uplink Port,The 8 PoE ports can automatically detect and provide power for any connected 802.3af/at Powered Device(PD), such as VOIP phones,IP Cameras,all PoE ports support the IEE802.3af/at standard,with a maximum output of 30 W each port
2.Feature
|
|
8*10/100Mbps PoE ports, 2*10/100Mbps uplink port Support IEEE802.3af/at Support restrain network storm, VLAN function Support Max Transmission distance up to 250m with PoE Power All port supported by MDI/MDIX auto flip and self-negotiation Built-in power supply; Maximum power of single PoE port: 30 W; Maximum PoE power: 1 2 0 W; Adopts store-and-forward architecture; Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall Support lightning protection 6000V
|
3．Application Diagram
4. Dimensions
5. Specifications
| Power | Power Adapter Voltage | AC 110V-240V | |
| Consumption | 120W(52V, 2.3A) | ||
|
Network Connector |
Network Port | PoE Ethernet Port | 1～8 Port : 10/100Mbps |
| Ethernet port | Uplink Port : 10/100Mbps | ||
|
Transmission Distance |
1～8 Port : 100Mbps:0~100m; 10Mbps: 0~250m; |
||
| Uplink Port : 0 ~ 100m | |||
| Transmission Medium | Cat5/5e/6 standard network cable | ||
|
Network Switch |
Network Standard | IEEE802.3/802.3u, IEEE802.3x,IEEE802.ab | |
| Switching Capacity | 2.0Gbps | ||
| Packet Buffer Memory | 1Mbits | ||
| Throughput | 1.488Mbps | ||
| MAC Table | 1K | ||
|
Packet Forwarding rate |
10Mbps: 14880pps/port 100Mbps: 148800pps/port | ||
|
Power Over Ethernet |
PoE Standard | IEEE 802.3af/at | |
| PoE Power Supply | 12 45 + ,36 78- , 8 core power supply | ||
| PoE Power | af=15.4W,at=30W for each port | ||
|
RJ45 port |
Port Function |
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode | |
|
LED Indicator |
LED Indicator |
LINK/ACT.100Mbps;PoE Status Indicator; Power indicator;Extender | |
|
Environmental |
Working temperature | 0℃~55℃ | |
| Relative Humidity | 20~95% | ||
| Storage temperature | -20℃~70℃ | ||
|
Mechanical |
Dimension (L×W×H) | 202mm*140mm*45mm | |
| Color | Black | ||
| Weight | 1.05kg | ||
6. Order Information
| Part No | Description of product | Unit |
| ND1P802F | 10 ports switch with 8*10/100M PoE ports,2*10/100M Uplink Port,PoE Standard: IEEE 802.3af/at,PoE data & power transmission distance 100meters(100Mbps),250meters(10Mbps) | pc |
