Power Dissipation: | <2.5W | Wavelength: | 1310nm |
---|---|---|---|
Fiber Distance: | 20KM | Power Supply: | DC/5V,AC/100-240V; |
Storage Humidity: | 5%~90% | Operating Temperature: | 0°C~50°C |

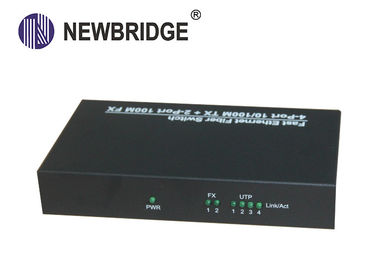

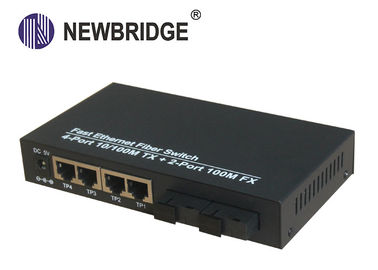

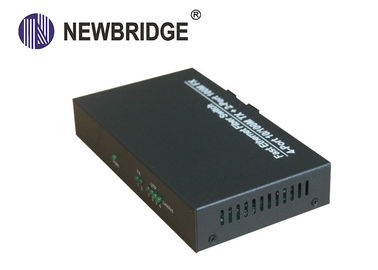

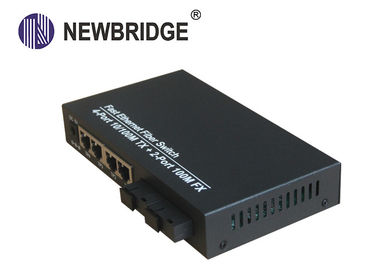

10 100M Media Converter Single Mode dual Fiber To Ethernet 1310nm SC Port fiber optical converter
Feature
The suit of 10/100M IP Switch :

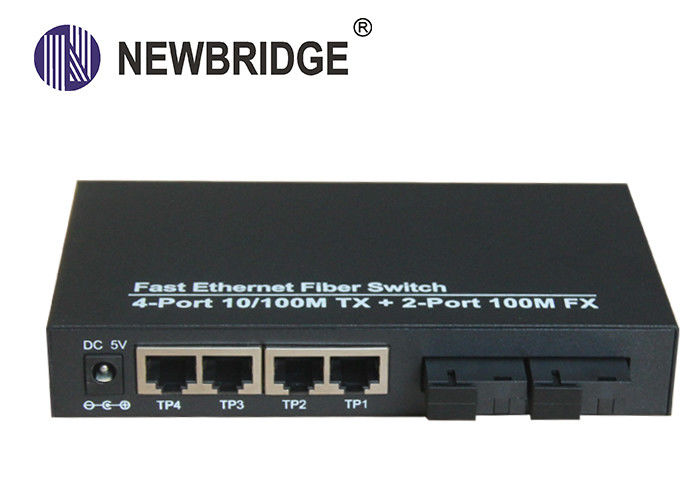

2*10/100M-FX+4*10/100M Base-T media converter
1. 10/100M dual fiber single mode,1310nm,SC port,0~20KM;
2. External power supply: DC/5V,AC/100-240V;
3. Stand alone type;
Specification
Standard | IEEE802.3 (10BASE-T),IEEE802.3u 100BASE-TX/FX (Fast-Ethernet),IEEE802.3x (Flow Control),IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
10/100 BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
100BASE-FX | 50/125umfiber cable (5km), 62.5/125um multimode fiber cable (2km) 9/125um singlemode fiber cable (20/40/60/80/100km) |
Conversion Mode / Delay Time | Store-and-Forward < 10us, straight-through<0.9us |
Flow control | Full duplex-flow control, Half duplex-back pressure |
RJ-45 Port | Auto-MDI/MDIX |
Fiber Connector | SC standard, ST/FC optional |
Wavelength | 1310nm |
Input Voltage | DC 5V1A with External power adapter |
Power Consumption | <2.5W |
MTBF | 50,000 hours |
BER | <1/1000000000 |
MAC Address Table | 1K |
Buffer Size | 1M |
Operating Temperature | 0°C~50°C |
Storage Temperature | -40°C~70°C |
Storage Humidity | 5%~90% non-condescending |
Order info
Part No | Description of product | Unit |
ND-820SW-20-4 | 4*10M/100M bps Base-T+2*10/100M -FX, Single mode,1310nm,0-20KM,SC | 1pc |
