| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | FCC,CE |
| Model Number: | ND-AHD-001 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | According to the different products , the monthly output is different |
| Wavelength: | 1310nm&1550nm | Optical Interface: | FC、ST 、SC (optional) |
|---|---|---|---|
| Temperature: | -40ºC ~75ºC | Optical Connector: | FC、ST、SC (optional) |
| Power: | DC 5V/2A | Installation: | Wall Mount |

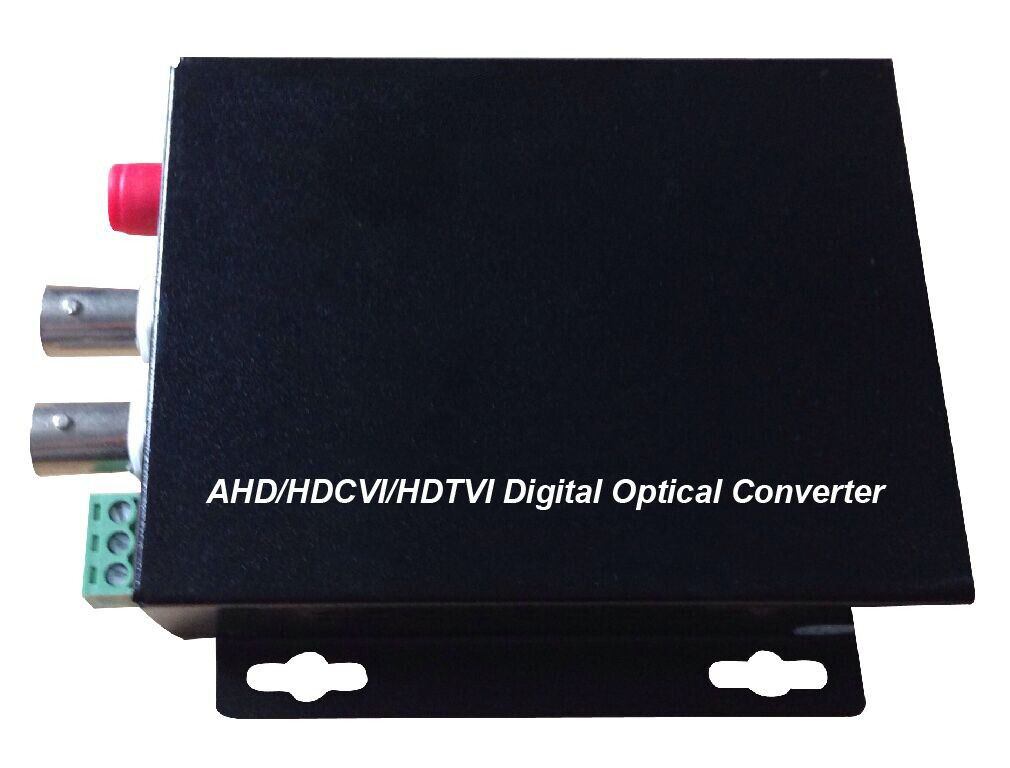

1 channel HD TVI +1 DATA video HD TVI CVI AHD optic transmitter Receiver/fm multiplexer
AHD TO Fiber Converter
AHD TO Fiber Converter can simultaneously transmit 1-8 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment . Compatible with720P/ 1280H/25f, 720P/1280H/30f, 720P/1280H/50f, 720P/1280H/60f. Lossless non-compression real time transmission.
AHD TO Fiber Converter support AHD-H,AHD-M,AHD-L analog HD video format ,high definition,good color reducibility.
Optical parameter:
| Wavelength | 1310nm&1550nm |
| luminous power | -8~ -3dBm / -3~+2dBm |
| Optical type | 50/125um,62.5/125um,9/125um |
| receiver sensitivity | -22dBm |
| Optical interface | FC,ST ,SC (optional) |
| Transmission distance | 0~500M(MM) / 0~20KM(SM) |
video parameter:
| input level | >500mVp-p |
| Output level | 1Vp-p |
| In-out impedance | 75ohm |
| The receiver time of rise and fall | <0.8ns |
| Receiver maximum shake | <0.2 UI |
| physical interface | BNC |
| Input/output channel | 1/2/4/8 |
| Indicator light | fiber,power,video |
Other
| Power | DC5V 2A |
| Power Consumption | ≤6W |
| Temperature | -40ºC ~75ºC |
| Humidity | 10%~90% RH |
| Installation | Wall mount |
| MTBF | ≥ 100000Hours |
AHD TO Fiber Converter system design
