Place of Origin: | SHENZHEN,CHINA |
Brand Name: | NEWBRIDGE |
Certification: | CE,FCC |
Model Number: | ND-ATV4V1D-S20-1 |
Minimum Order Quantity: | 1PC |
---|---|
Price: | Negotiation |
Packaging Details: | packing can be done by customer's requested, usually used in carton |
Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | According to the different products , the monthly output is different |
Fiber: | Single-Mode | Indicators: | OPT, PWR, DATA, VIDEO |
---|---|---|---|
Sampling Bandwidth: | 10 Bit | Maximum Transmission Distance: | 20km |
Video Physical Interface: | BNC | Video Bandwidth: | 50MHz |
Optical Multiplexer is popularly with telecommunication operator and suitable in business for communication operator, government and kinds of entities. It is one of the most transmission equipment in point-point fiber optic network. Typical optical multiplexers are Video & Data & Audio Multiplexers, PDH Multiplexer. Powerlink optical multiplexers are highly manageable, accompanied by a network management system for configuration, service, performance, security, and fault management that enable cost-effective and efficient transport.

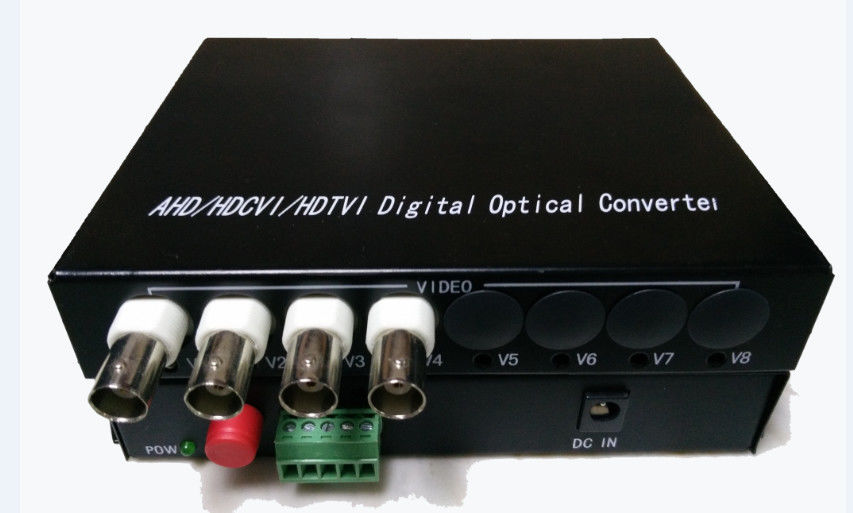

Fiber optic Video+Data+ Audio Multiplexer/Converter-Transmitter+Receiver can transmit and extend a maximum of video up to a few tens of kilometers. The fiber video converters operate as a transmitter/receiver pair for the transmission of NTSC or PAL video signal with bi-directional audio and bi-directional RS422 or RS485 data over fiber cables. We supply 1, 2, 4, 8, 16, 24, 32 channels fiber video converter with return or bidirectional data&bi-directional RS422 or RS485 data. Plug and Play design ensures the ease of installation and operation. Please feel free to contact us for all your video to fiber and other video conversion requirements.
Descriptions
Key Features
Technical Indexes
Fiber | FC, Single Mode Single Fiber |
Transmition Distance | 0-120km |
Wavelength | Transmitter: 1310nm(Tx)/1550nm(Rx) |
Receiver: 1550nm(Tx)/1310nm(Rx) | |
Transmitter Input Level | >500mVp-p |
Receiver Output Level | 1Vp-p |
Self-adaption cable equilibrium |
1080p: 75-5 coaxial cable,300m
960p: 75-5 coaxial cable,500m
720p: 75-5 coaxial cable,500m
|
Transmitter Input Return Loss | >15dB |
Input/Output Impedance | 75Ω |
Video Physical Interface | BNC |
Video Channel | 1-Ch~16-Ch |
Video bandwidth | 50MHz |
Sampling Bandwidth | 10 bit |
RS485 | 1-Ch Backward RS485 (Optional) |
Indicators | OPT, PWR, DATA, VIDEO |
Power | DC 5V2A |
Power Consumption | ≤7W |
Operation Humidity | 10%~90% |
Operation Temperature | -30°C~75°C |
