4A B Building Zhuao Industrial Park Gushu Xixiang Baoan District Shenzhen,China,518126 | info@newbridge.com.cn |
Place of Origin: | SHENZHEN,CHINA |
Brand Name: | NEWBRIDGE |
Certification: | FCC,CE |
Model Number: | ND-820SW-S20-2 |
Minimum Order Quantity: | 1Pair |
---|---|
Price: | Negotiation |
Packaging Details: | packing can be done by customer's requested, usually used in carton |
Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | According to the different products , the monthly output is different |
Operating Temperature: | 0℃~50℃ | Storage Temperature: | -40℃~70℃ |
---|---|---|---|
Input Voltage: | DC 5V | RJ-45 Port: | Auto-MDI/MDIX |
Fiber Connector: | SC Standard, ST/FC Optional | Wavelength: | 1310nm/1550nm |

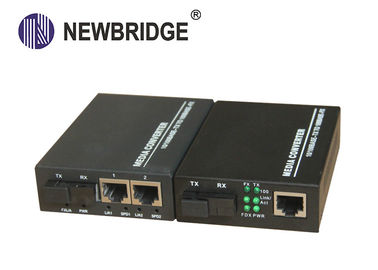

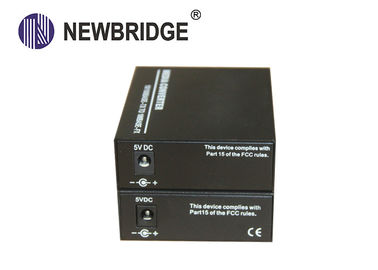

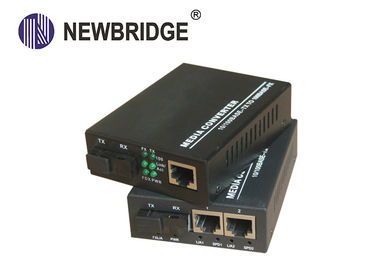

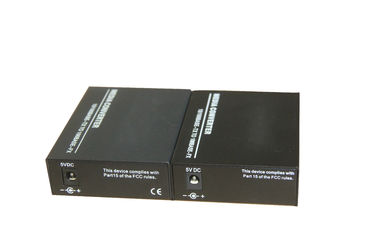

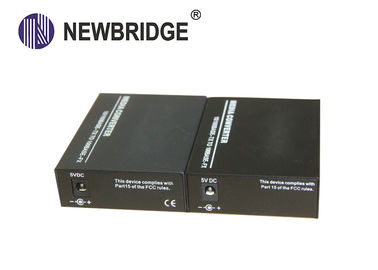

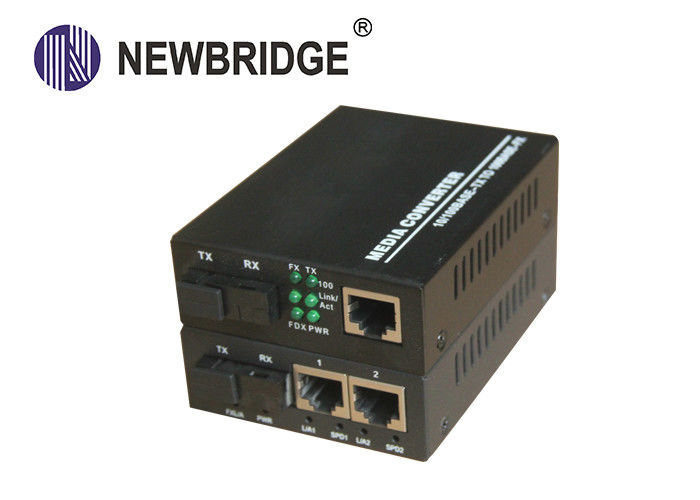

Single Mode 10 / 100M Simplex RJ45 To Fiber Optic Converter SC Mode Connector
Fiber media converter, or fiber converter, media converter, or Ethernet fiber converter, is designed to extend the copper limit of 100 meters and gets Ethernet connected to 120km max on fiber optics Fiber media converter is a simple networking device that connects two dissimilar media types such as copper twisted pair and fiber optics
Feature
1. 100BASE-FX FIBER to 10/100BASE-T COPPER Ethernet conversion
2. Auto-MDI/MDIX copper RJ45 port
3. 1600byte super data packet transmission
4. Full duplex-flow control, half duplex-back pressure
5. Link fault pass through (LFPT)
6. Full- positioned LEDs to indicate power and network status
specification
Standard | IEEE802.3 (10BASE-T),IEEE802.3u 100BASE-TX/FX (Fast-Ethernet),IEEE802.3x (Flow Control),IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
10/10 0 BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
100BASE-FX | 50/125umfiber cable (5km), 62.5/125um multimode fiber cable (2km) 9/125um singlemode fiber cable (20/40/60/80/100km) |
Conversion M ode / D elay T ime | Store-and-Forward < 10us, straight-through<0.9us |
Flow control | Full duplex-flow control, Half duplex-back pressure |
RJ-45 Port | Auto-MDI/MDIX |
Fiber Connector | SC standard, ST/FC optional |
Wavelength | 1310/1550nm |
Dimensions | 130mm X 86 mm X 26mm |
Weight | Net weight : 0.16kg; Gross weight : 0.42kg |
Input Voltage | DC 5V1A with External power adapter |
Power Consumption | <2.5W |
MTBF | 50,000 hours |
BER | <1/1000000000 |
MAC Address Table | 1K |
Buffer Size | 1M |
Operating Temperature | 0°C~50°C |
Storage Temperature | -40°C~70°C |
Storage Humidity | 5%~90% non-condescending |
Order info
Part No | Description of product | Unit |
ND-820SW-S20-2 | 10M/100M bps, Single mode,Tx1550nm/Rx1310nm,0-20KM,SC | |
ND-820SW-S20 | 2*10M/100M Base-T+1*10/100M-FX, Single mode,Rx1310nm/Tx1550nm,0-20KM,SC |
