Place of Origin: | SHENZHEN,CHINA |
Brand Name: | NEWBRIDGE |
Certification: | FCC,CE |
Model Number: | ND-820SW-S20-4 |
Minimum Order Quantity: | 1pair |
---|---|
Price: | Negotiation |
Packaging Details: | packing can be done by customer's requested, usually used in carton |
Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | According to the different products , the monthly output is different |
Power Dissipation: | <2.5V | Storage Temperature: | -40°C~70°C |
---|---|---|---|
Fiber Distance: | 20KM | Power Supply: | DC/5V,AC/100-240V; |
Operating Temperature: | 0°C~50°C | Fiber Connector: | SC Standard, ST/FC Optional |

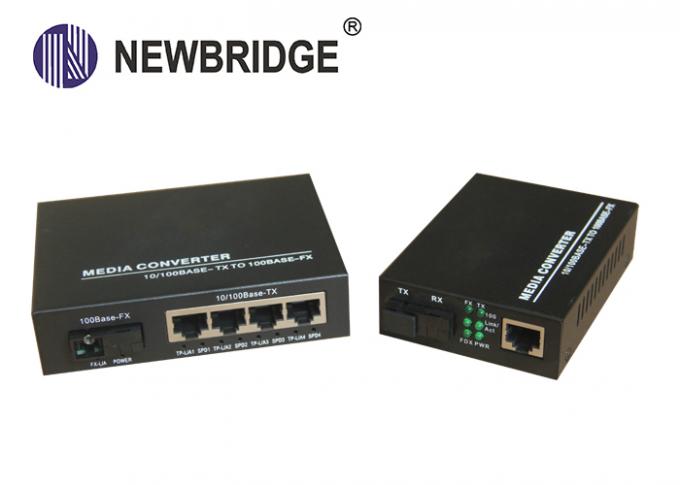

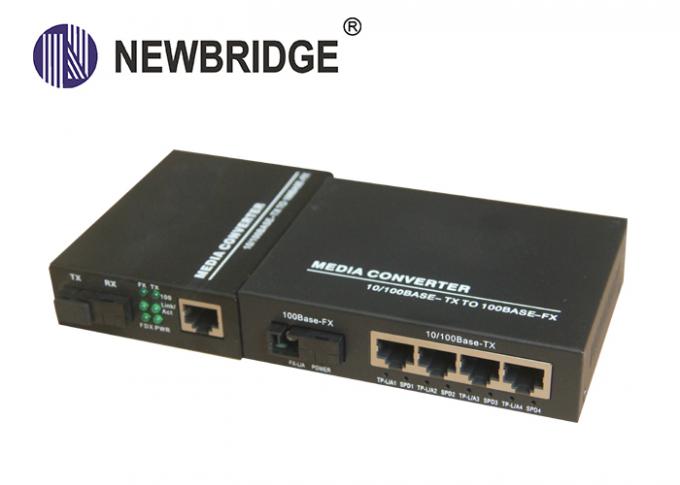

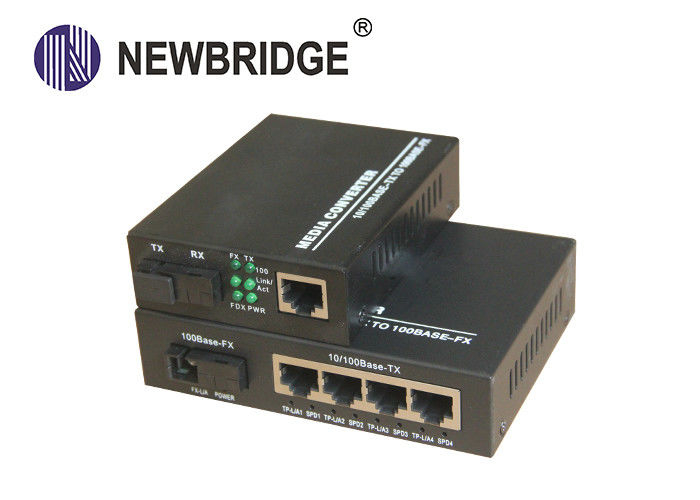

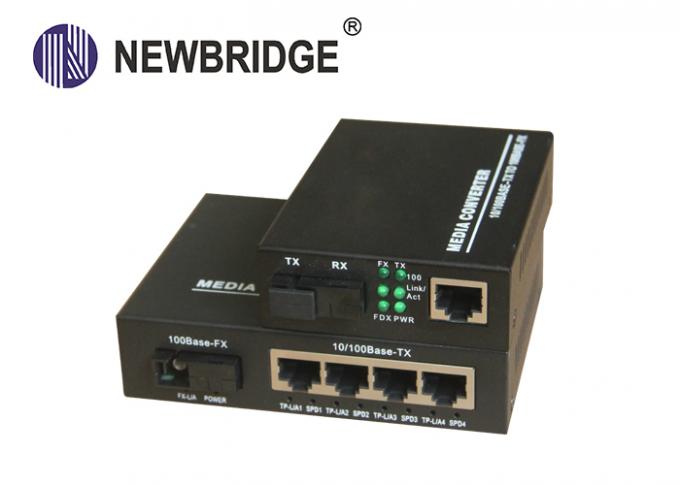

10 100M Media Converter,20KM single fiber single mode SC port with 4 RJ45 Switch
Feature
The suit of 10/100M IP Switch :
1X4 10/100M IP Switch +1*1 10/100M optical port(A) &
1X1 10/100M media converter(B)
1.10/100M single fiber single mode,1310TX/1550RX,SC port,0~20KM;

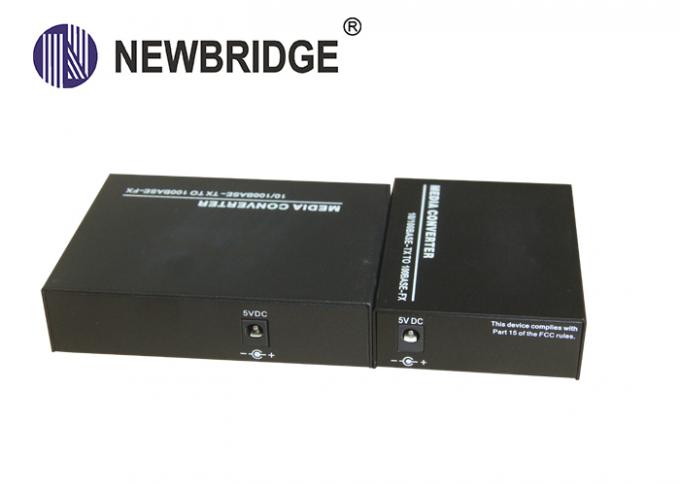

2.External power supply: DC/5V,AC/100-240V;
Specification
Standard | IEEE802.3 (10BASE-T),IEEE802.3u 100BASE-TX/FX (Fast-Ethernet),IEEE802.3x (Flow Control),IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
10/100 BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
100BASE-FX | 50/125umfiber cable (5km), 62.5/125um multimode fiber cable (2km) 9/125um singlemode fiber cable (20/40/60/80/100km) |
Conversion Mode / D elay Time | Store-and-Forward < 10us, straight-through<0.9us |
Flow control | Full duplex-flow control, Half duplex-back pressure |
RJ-45 Port | Auto-MDI/MDIX |
Fiber Connector | SC standard, ST/FC optional |
Wavelength | 1310/1550nm |
Input Voltage | DC 5V1A with External power adapter |
Power Consumption | <2.5W |
MTBF | 50,000 hours |
BER | <1/1000000000 |
MAC Address Table | 1K |
Buffer Size | 1M |
Operating Temperature | 0°C~50°C |
Storage Temperature | -40°C~70°C |
Storage Humidity | 5%~90% non-condescending |

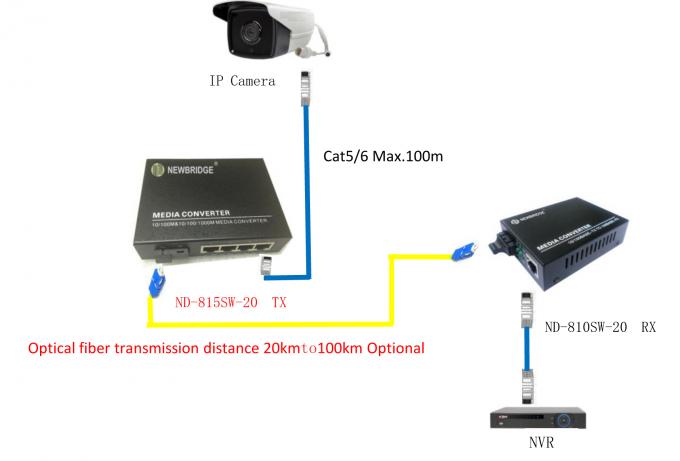

Connection Diagram
Order info
Part No | Description of product | Unit |
ND-810SW-20B ND-815SW-20A |
1*10M/100M bps+1*10/100M-FX, Single mode,1550nm,0-20KM,SC 4*10M/100M bps+1*10/100M-FX, Single mode,1310nm,0-20KM,SC |
