| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | CE,FCC |
| Model Number: | ND8210S-SP09 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | According to the different products , the monthly output is different |
| HDMI Version: | HDMI 1.4b | Support Video Format: | Support Video Format |
|---|---|---|---|
| Baud: | 120g | Power Input: | AC (50HZ, 60HZ) 100V-240V |
| Power Output: | DC12V/2A | Size: | 276x136x24 (mm) |
4K 1.4b 1 x 16 HD HDMI Splitter 1 in 2 out in HDMI Splitter,support 3D Video
The 1x16 HDMI Splitter uses a single HDMI source,accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to sixteen HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.Resolution up to 3840X2160/30Hz.
Feature
★ Support HDMI 1.4b
★ Support 3D video format
★ Resolution up to 3840x2160/30Hz
★ Support 3.2Gbps data rate for TMDS clock up to 320MHz
★ Support deep color 8/10/12bit
★ support AWG26 HDMI standard cable:
when the resolution is 1080p and below, input up to 15 meters,output up to 25 meters.
when the resolution is 4K, input up to 12 meters, output up to 15 meters.
★ Support displaying single source, multi-output high-definition signal source from DVD player A / V receiver, set-top box
★ Need DC 12V/5A power supply
Specifications:
| HDMI version | HDMI 1.4b |
| HDMI resolution | UP TO 3840*2160/30Hz |
| Support video color format | 8/ 10/12bit deep color |
| Support audio format | DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
| Max bandwidth | 320MHz |
| Max baud rate | 3.2Gbps |
| Input cable distance | 1080p≤15m,4k≤12m |
| Output cable distance | 1080p≤25m,4k≤15m |
| HDMI input | 1 HDMI |
| HDMI output | 16 HDMI |
| Max working current | 2.15A |
| Specifications of power adapter | Input:AC (50HZ, 60HZ) 100V-240V;output: DC5V/1A |
| Operating Temperature range | (-15 to +55℃) |
| Operating Humidity range | 5 to 90%RH (No Condensation) |
| Dimension (L x W x H) | 460x150x40mm |
| Weight | 1680g |

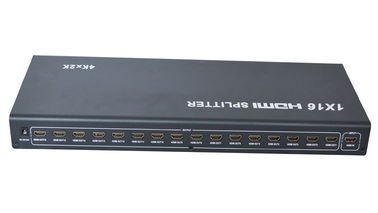

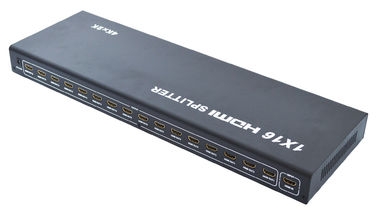

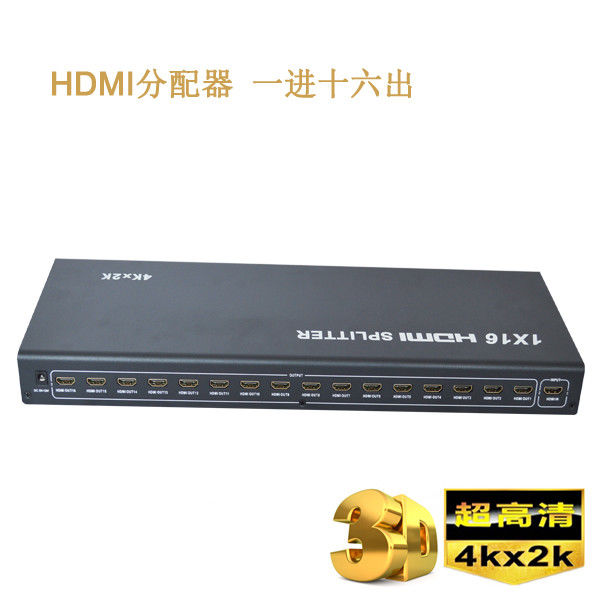

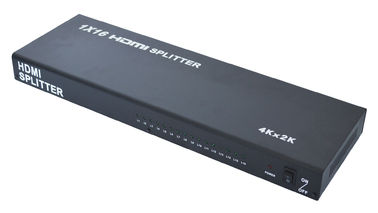

Product photos

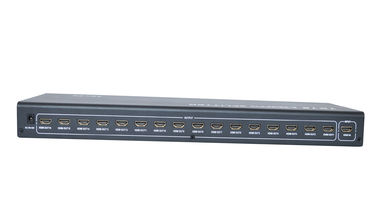

Interface Picture:
Operating and Connecting:
1.Connect 1 HDMI cable from HDMI source devices into HDMI Splitter input.
2.Connect 16 HDMI cables from each displayers (monitors or projectors) into the HDMI Splitter outputs.
3.Connect 12V power supply to the HDMI Splitter 1x16.
The Package includes
1. HDMI splitter 1X16
2. 12V DC Power Supply
3. User Manual
