Input Impedance: | 600 Ohm | Input/Output Level: | 0dBm (Typical) |
---|---|---|---|
Frequency Response: | 20Hz-20KHz | Bit Resolution: | 24 Bit |
Connector: | SC/FC To Optional | Power Supply: | AC 100—260V 50—60Hz, DC 12V, 5V 1—2A To Your Optional |
Lightning Protection M Series Digital Video Optical Transceiver For PTZ Cameras
Overview
OLINK Fiber Optic Transmitter - Fiber Optic Video Transmitter for PTZ Cameras Series support 1~64 Channels 8-bit digitally encoded broadcast quality video, data and 10M/100M IP Ethernet over one multi-mode fiber optic cable or single-mode fiber optic cable. The modules are directly compatible with NTSC, PAL, and SECAM camera systems and support RS-485, RS-232, and RS-422 data protocols. These fiber optic transmitter and fiber optic receiver are typically used in applications with PTZ cameras for security surveillance, CCTV, ITS, CIQ, etc, and are available for stand-alone or rack-mount installations.
Features
◆ Surge & lightning protection |
◆ Available in popular configurations, stand alone or rack mounted(2U/4U) |
◆ Meets RS250C short Haul transmission specifications, with NTSC,PAL and SECAM compatibility |
◆ Support any high resolution video signal |
◆ LED indication of power and other parameter status, monitoring real-time operation |
◆ Real time 8/10 bit uncompressed video |
◆ Transmission of video, audio ,data , infrared alarm, phone and Ethernet |
◆ 24 bit audio processing |
◆ Multi-protocol data channels – field configurable |
◆ Surface Mount Technology |
Application
◆ CCTV system |
◆ Intelligent transportation system(ITS) |
◆ TV medical treatment |
◆ Long-distance Muti-media Schooling, Campus monitoring |
◆ Long-distance broadcast television transmission system |
◆ Tele-Communication System |
◆ Military Tele-Com projects |
Typical Configuration

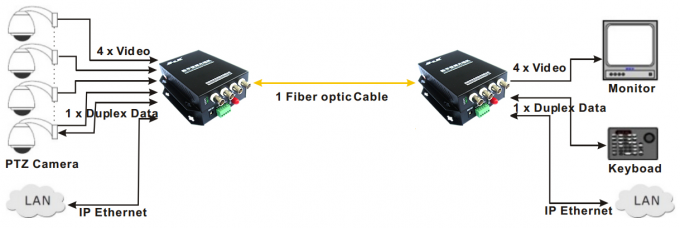

Demonstration of connection: 4Ch Video + 1 Duplex Data + 1 Ethernet/IP over Fiber
Technical Specification
Video | |
Input | 1V p-p (75 ohm) |
Connecter | BNC |
SNR | ≧70 dB |
Bandwidth | 5MHz-8MHz |
Distortion | DG<1%,DP<0.7° |
Audio | |
Input Impedance | 600 Ohm |
Input/Output Level | 0dBm (Typical) |
Frequency Response | 20Hz-20KHz |
Bit Resolution | 24 bit |
Data | |
Interface | RS485 or RS232 |
Connector | Industry Terminal Block |
Optical | |
Fiber required | 1 |
Connector | SC/FC to optional |
Wavelength | 850 nm/ 1300nm for Multimode; 1310nm/1550nm for Single mode |
Others | |
Bit Rate Error | 10-9 |
Power Supply | AC 100—260V 50—60Hz, DC 12V, 5V 1—2A to your optional |
Operating Temperature | 0° C to + 50°C |
Storage Temperature | - 40° C to + 75°C |
Humidity | 5%-95% Non-Condensing |
Size | 210mm(L) x 139mm(W) x 26mm(H) |
