4A B Building Zhuao Industrial Park Gushu Xixiang Baoan District Shenzhen,China,518126 | info@newbridge.com.cn |
Place of Origin: | SHENZHEN,CHINA |
Brand Name: | NEWBRIDGE |
Certification: | FCC,CE |
Model Number: | ND-20GSF-BD/80 |
Minimum Order Quantity: | 1PC |
---|---|
Price: | Negotiation |
Packaging Details: | packing can be done by customer's requested, usually used in carton |
Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | According to the different products , the monthly output is different |
Fiber: | Single Fiber | Device Type: | Optical SFP Module |
---|---|---|---|
Standard: | SFF-8431,SFF-8432,IEE802.3ae | Operating Temperature: | 0°C To 70°C |
Distance: | 80km | Fiber Connector: | SC,FC,ST |

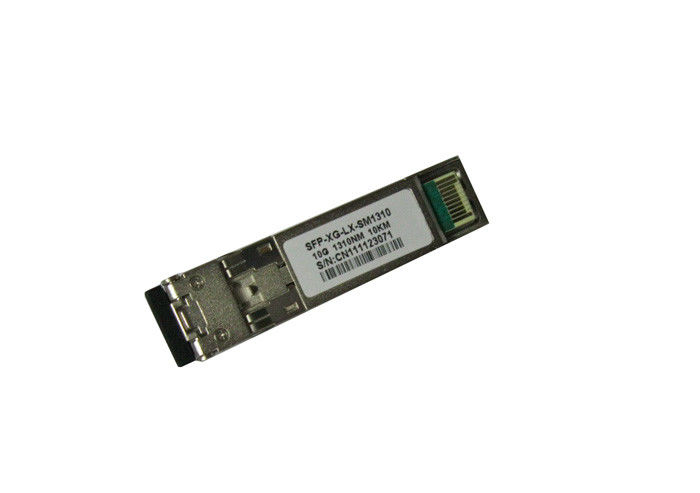

The 10G Bi-Directional SFP optical Transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability.
The 10G Bi-Directional SFP optical Transceiver is designed for single mode fiber and operates at a nominal wavelength of 1270nm; BDTRX837L1SN-10 module is designed for single mode fiber and operates at a nominal wavelength of 1330nm. The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.
The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
¨ Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
¨ Compliant with SFF-8431,SFF-8432 and IEE802.3ae
¨ Up to 10km on 9/125um SMF
¨ Two types:
A:1270nm DFB Laser transmitter,1330nm receiver
B:1330nm DFB Laser transmitter,1270nm receiver
¨ Digital Diagnostic SFF-8472 Compliant
¨ Operating case temperature 0 ~ 70 °C
¨ RoHS6 compliant (lead free)
¨ 10GBASE-LR at 10.3125Gbps
¨ Other Optical Links
