| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | FCC,CE |
| Model Number: | ND-920SW-20 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | According to the different products , the monthly output is different |
| Wavelength: | 1310nm/1550nm | Fiber Connector: | SC,FC,ST |
|---|---|---|---|
| Dimensions: | 130mm X 86 Mm X 26mm | Power Consumption: | <2.5W |
| Storage Temperature: | -40 °C~70 °C | RJ-45 Port: | MDI/MDIX |

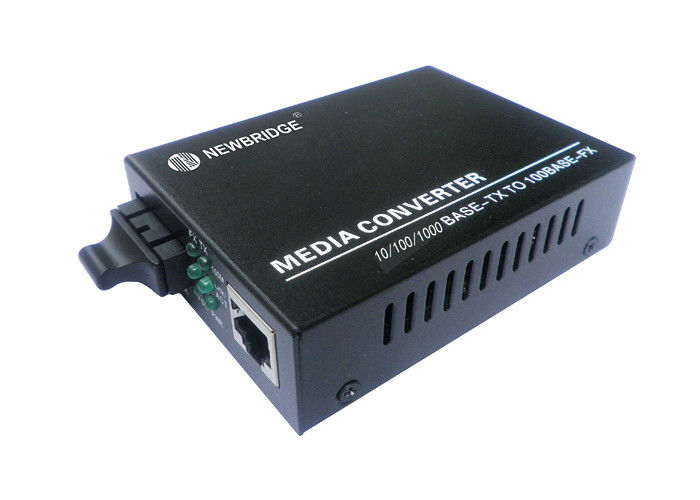

10/100/1000M Fast Ethernet Optical Media Converter with SC, FC,ST connector
1X1 10/100/1000M media converter(8334)
1. One port 10/100/1000M optcal ,one port 10/100/1000M RJ45;
2. 10/100/1000M Dual fiber Single mode,1310nm,SC,
0~20KM,Stand alone;
3. External power supply,DC/5V,AC/100-240V;
4. Package in 1 pair ;
Feature
1. 10/100/1000Mbps autosensing, auto-MDI/MDIX
2. 1600byte super data packet transmission - jumbo frame
3. Full duplex-flow control, Half duplex-back pressure
4. Link fault pass through (LFPT)
5. Full- positioned LEDs to indicate power and network status
Specification
| Standard | IEEE802.3 (10BASE-T),IEEE802.3u 100BASE-TX/FX (Fast-Ethernet) IEE802.3z 1000BASE- SX/LX(Gigabit-Ethernet), IEEE802.3x (Flow Control),IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| 10/10 0/1000 BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
| 100 0 BASE-FX | 50/125umfiber cable (1km), 62.5/125um multimode fiber cable (0.5km) 9/125um singlemode fiber cable (20/40/60/80/100/120km) |
| Conversion M ode / D elay T ime | Store-and-Forward < 10us, straight-through<0.9us |
| Flow control | Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port | Auto-MDI/MDIX |
| Fiber Connector | SC standard, ST/FC optional |
| Wavelength | 1310/1550nm |
| Dimensions | 130mm X 86 mm X 26mm |
| Weight | Net weight : 0.16kg; Gross weight : 0.42kg |
| Input Voltage | DC 5V1A with External power adapter |
| Power Consumption | <2.5W |
| MTBF | 50,000 hours |
| BER | <1/1000000000 |
| MAC Address Table | 1K |
| Buffer Size | 1M |
| Operating Temperature | 0 °C~50 °C |
| Storage Temperature | -40 °C~70 °C |
| Storage Humidity | 5%~90% non-condescending |
order info
| Part No | Description of product | Unit |
| ND-920SW-20 | 10M/100/1000M bps, Single mode,1310nm,0-20KM,SC |
