Model: | ND6710 | SDI Signal Range: | 0.8V P-p |
---|---|---|---|
SDI Impedance: | 75 Ohms | Power Supply: | 5v~24v DC |
Storage Temperature: | -30°C ~ 70°C / -22°F ~158°F | Dimension: | 150 X 120x 36 Mm / 5.98x 4.69 X 1.42 Inches |

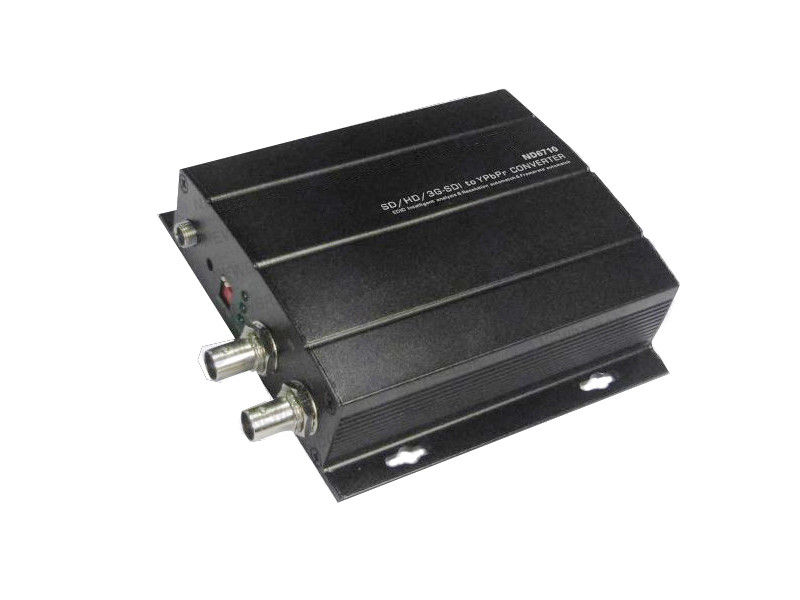

24 V DC HD Fiber Transceiver Single Mode SDI 270Mbps
1. Overview
Newbridge® ND6710 is specially designed to convert SDI signal to YPBPR signal and synchronous Audio signal.It adopts latest high performance decoding technology that it is lossless to convert SD/HD/3G-SDI signal to Ypbpr signal.This technology could extremely restore digital high definition signal. The device is compliant to different SDI signal bite rates e.f 480i/ 480p/ 576p/ 720p/ 1080i/ 1080p.It is widely used in High definition electron call-board,Multimedia advertisement ,High definition video surveillance, High definition video conference, Large screen splicing system ,HI-FI home theatre ,High definition broadcast ect.
2. Features
|
l Support all type SDI resolution: SD-SDI:480i,576i HD-SDI:720p24/25/30/50/59.94/60 1080i all frame rate 1080p all frame rate 3G-SDI:1080p all frame rate Support l Carry 1 channel SDI signal loop out. l 1 YPBPR out and 1 stereo audio out l Support OSD menu operation l Auto-adaptive to optimum display mode l support all format asymmetric conversion l Support blue screen alarm to loss signal l Support remote control l Support user to force output mode |
3.Application Diagram
4. Dimensions
5. Specifications
Model | ND6710 |
Input Interface | 1x BNC SDI |
Input Signal Type |
SD-SDI (270Mbps), HD-SDI (1.485Gbps), 3G-SDI (2.97Gbps) |
Support Input Format |
SD: 525i @ 59.94Hz, 625i @ 50Hz HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz 720p @ 50Hz / 59.94Hz / 60Hz 1080i @ 50Hz / 59.94Hz / 60Hz 1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz 3G: 1080p @ 50Hz / 59.94Hz / 60Hz |
SDI Signal Range | 0.8V p-p |
SDI Impedance | 75 ohms |
SDI Coupling Type | AC Coupling |
Max. Input Coax Length |
Belden 1694A SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft ; 3G-SDI 140m / 450ft |
SDI Loop Out Interface | 1x BNC SDI |
YPbPr Output Fomart | 480I, 480P, 576I, 576P, 720P, 1080I |
YPbPr Output Interface | 1x YPbPr |
Audio Output Interface | 1 x Audio |
Frequency Bandwidth | 165MHz/ up to standard with HDCP :HDMI 1.3 |
Power Supply | 5V~24V DC |
Power Consumption | 3~6 Watts |
Operating Temperature | -10°C ~ 60°C / 14°F ~ 140°F |
Storage Temperature | -30°C ~ 70°C / -22°F ~158°F |
Relative Humidity | 20~90% RH (Non-condensation) |
Dimension | 150 x 120x 36 mm / 5.98x 4.69 x 1.42 inches |
Weight | 300g |
6. Order Information
Part No | Description of product | Unit |
ND6710 | SD/HD/3G-SDI to YPpPr Converter | pcs |
