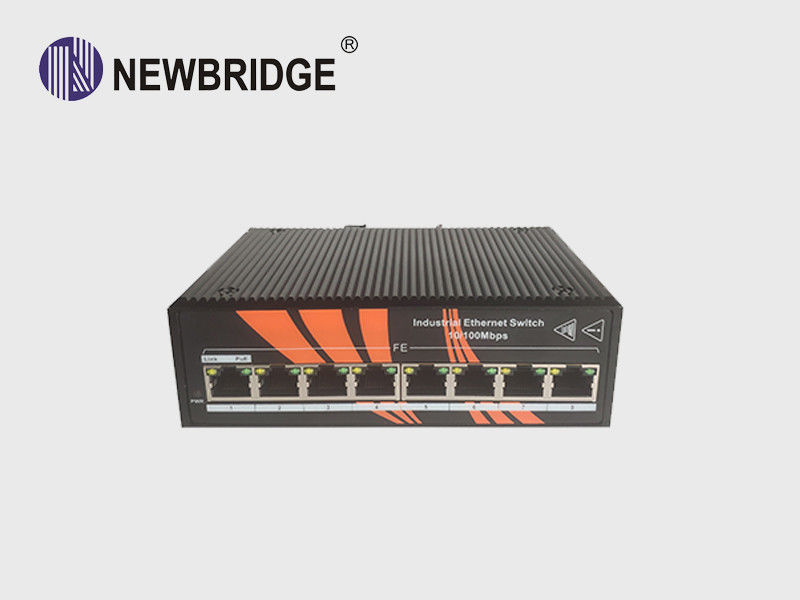

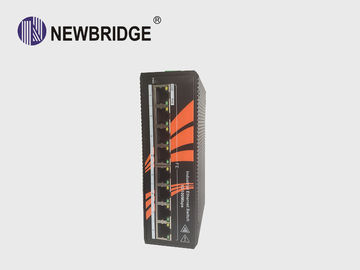

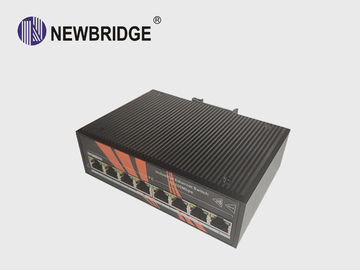

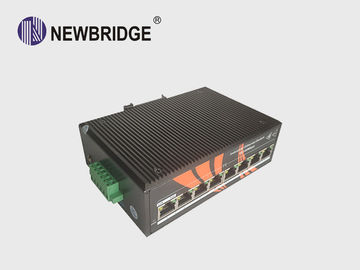

Name: 8 Port Unmanaged PoE Ethernet Switch IP40 Protect Grade Without Cooling Fan
Brand: Shenzhen Newbridge Communication Equipment Co.,Ltd
SKU: ND-X820-05TX
Availability: InStock

Home Products PoE Ethernet Switch

8 Port Unmanaged PoE Ethernet Switch IP40 Protect Grade Without Cooling Fan

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	NEWBRIDGE
Certification:	FCC,CE
Model Number:	ND-X820-05TX

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	packing can be done by customer's requested, usually used in carton
Delivery Time:	According to the quantiy and stocking , 3-4 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	3000pcs per month

Contact Now

Detailed Product Description

Input Power:	12~48V DC (Terminal Block)	Shell:	IP40 Protect Grade, Metal Shell
Installation:	DIN-Rail Or Wall Mounts	Working Temperature:	-40～+85℃
Dimension (L×W×H):	157mm× 120mm× 48mm	Product Weight:	0.6kg
Interface:	8x10/100Base-T Ethernet Port
Highlight:	industrial ethernet switch , power over ethernet switch

8 port unmanaged Industrial ethernet switch PoE Ethernet swith

1. Overview

Newbridge® ND-X820-08TX Industrial Ethernet Switch, 8 Port 10/100Mbps Ethernet ports ,for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other devices.

Specially designed for harsh outdoor applications. Its 6KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry-standard types of power

2. Features

8 Port Unmanaged PoE Ethernet Switch IP40 Protect Grade Without Cooling Fan

ND-X820-08TX

8 Port 10/100Mbps Ethernet RJ45 ,
Automatic MAC address learning and aging
10/100Mbps Auto-negotiation, Auto-MDI-MDI-X
LED indicators for monitoring Power/link/activity
Supports 10/100Mbps-Full/Half-duplex
Supports Wall-mount, DIN-Rail installation
Supports Daisy-Chain connection
Transmission data max. Support:1518 bytes
Supports Broadcast Storm Control
Supports Relay output for power failure
Super lightening protection, IP40 protection.
Excellent heat elimination without cooling fan.
Redundant dual DC power inputs.
Harsh industrial environment or higher requirement
-40⁰C to 85⁰C operating temperature range.
3-Year Warranty

3. Specifications

Product Name	8 Port 10/100Base-TX Industrial Ethernet Switch
Product Model	ND-X820-08TX
Interface	8x10/100Base-T Ethernet port
Network Protocols	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
Network Media	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter)
Performance Specification	Bandwidth: 1.6Gbps Packet Buffer Memory:1M 10 Mbps Packet Forwarding Rate:14880 pps/port 100Mbps Packet Forwarfding Rate:148800 pps/port MAC Address Table: 4K
Forwarding Mode	Store-and-Forward
Protection	Lightning protection, IP40 protection
LED Indicators	Power: PWR; Link; Link/Act
Power Supply	Input Power: 12~48VDC (Terminal Block) Input Power:2* 12~48VDC(Dual power redundancy backup) Power Consumption : <5W Connectors : Phoenix terminal Overload protection :20A Reverse polarity protection : 30s Alarm contact : No

Other Specifications
Working Environment	Working temperature: -40～85℃ ; Storage temperature: -45～85℃ Relative Humidity: 5%~95 %( no condensation)
Industry Standard	FCC CFR47 Part 15,EN55022/CISPR22, Class A EMS: IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air) IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) IEC (EN) 61000-4-8:support IEC 60068-2-27(Shock):support IEC 60068-2-32(Freefall):support IEC 60068-2-6(Vibration):support
Shell	IP40 protect grade, metal shell
Installation	DIN-Rail or Wall mounts
Packing List	1×Industrial Ethernet Switch (plus terminal block) 1×User Manual/Certificate of quality/Warranty card 1×DIN-Rail mounting kit
Certification	CE mark,FCC Part 15 Class B; RoHs
MTBF	300,000 hours
Weight & Size	Product Weight: 0.6KG Product size (L×W×H): 157mm× 120mm× 48mm
Warranty	3-years

4. Order Information

Part No	Description of product	Unit
ND-X820-08TX	8*10/100 Base-Tx Non-managed Ethernet Switches ,Industrial , aluminum alloy, DIN Rail, DC12~48V power supply ,Wide temperature (-40℃-85℃),CE-FCC-RoHS - DC power supply is not included by default.	pc
