TX Dimension: | 93x80x25 Mm | Max Bandwidth: | 340MHz |
---|---|---|---|
Max Band Rate: | 3.4Gbps | Power Output: | DC 5V 1A |
TX Max Working Current: | 510mA | TX Weight: | 614g |
Cat 5E/6 Cable HD SDI Repeater support 3D 1080P Bi Directional IR Control for 30 meters
Feature
★ Support HDMI 1.4a
★ Support 3D
★ Supports Bi-directional IR control
★ Support highest video resolution 1080p/60Hz
★ Support 1.5Gbps data rate and tmds clock up to 148.5MHz
★ Support 8 bit deep color
★ Support AWG26 HDMI standard cable, input up to 10 metres, output up to 15 metres
★ Signal transmission: By using single cat-5e or cat-6(recommended) cable instead of HDMI cable, it can extend the distance up to 30 meters between TX and RX.
★ No loss of quality
★ Install in minutes
★ Need DC5V/1A power supply

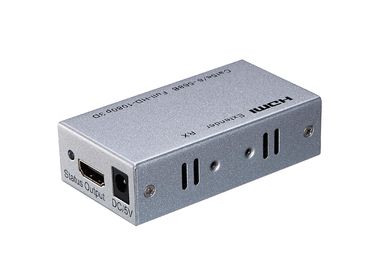

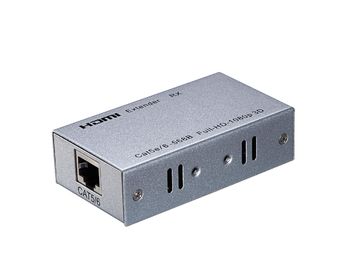

Product Picture

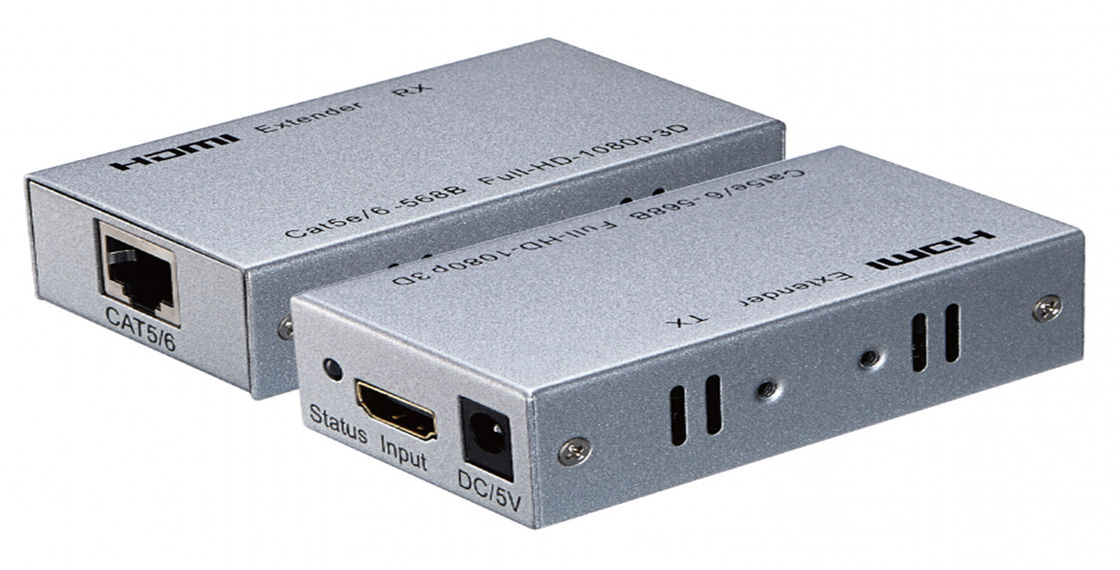

Physical Connection Showing Picture
Operating and Connecting
1.Connect one HDMI cable between source device and TX Extender, the max cable distance is 15 meters
2.Connect one HDMI cable between display device and RX Extender, the max cable distance is 20 meters
3.Connect single cat-5e or cat-6(recommended) cables instead of HDMI cables between TX and RX Extender, the max cable distance is 30 meters
4.Connect 5V power supply to the TX and RX.
5.LED indicator light
TX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red.
RX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red.
6.EDID button: The button can support the switch of EDID between 2D and 3D.(3D is the default EDID when the power is on).
Specification
Length of CAT-5E/CAT-6 cable between RX and TX | Up to 30 meters |
HDMI Input | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
Support Audio input | DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
HDMI Output | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
Support Audio output | DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
Max bandwidth | 165MHz |
Max band rate |
1.65Gbps |
Input Video signal |
0.5~1.5Volts p-p |
Output DDC signal |
5Volts p-p (TT1L) |
Input HDMI cable distance |
≤15m AWG26 HDMI standard cable |
Output HDMI cable distance |
≤20m AWG26 HDMI standard cable |
TX Max working current |
510mA |
RX Max working current |
100mA |
Power adapter format |
Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A |
Operating Temperature range |
(-15 to +55℃) |
Operating Humidity range |
5 to 90%RH (No Condensation) |
TX Weight |
100g |
Dimension (L x W x H) |
81x43x22 (mm) |
TX Weight | 100g |
RX Weight |
120g |
Before power on, please check the connection line carefully. And make sure that all interfaces are normally connected. The common trouble shooting way shows below:
Serial NO | Trouble Description | Cause and Ways to deal with |
1 | Non-Power-Connected |
1. Check if the power adaptor head is truly and correctly inserted to the power socket. 2. Check the power switch if it is on status. |
2 | No Picture |
1. Please make sure the TV turns on and connected with the machine well. 2. To check if the signal source turns on and connected well. 3. Check the system connection well. 4. Check if the cables are all in good quality. 5. HDMI Cable should be Standard Cable. |
3 | Obscure Picture |
1. Please try to connect all ports again to avoid bad connection. 2,HDMI Cable Quality ( HDMI Standard cable) |
