| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | CE,FCC |
| Model Number: | ND1104 |
| Minimum Order Quantity: | 1pair |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | According to the different products , the monthly output is different |
| Power Consumption: | 6W | Size: | 64*45*23mm |
|---|---|---|---|
| Video Standard: | -20°F To 140°F (-30°C To 60°C) | Relative Humidity: | 17 - 90% RH |
| Operating Temperature: | 32°F To 100°F (0°C To 38°C) | Weight: | 700g |

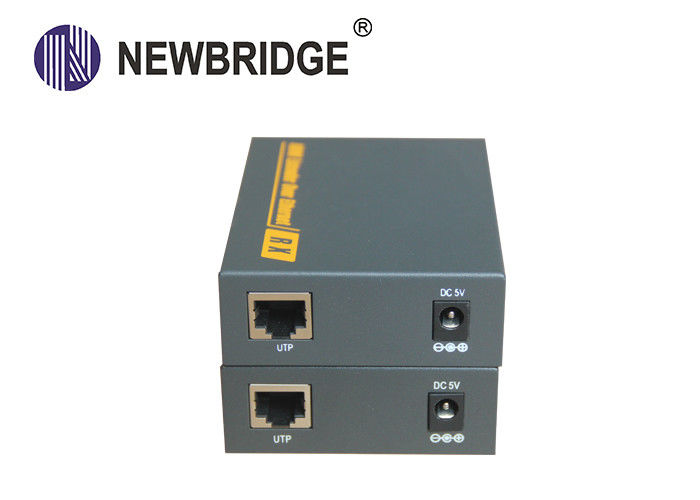

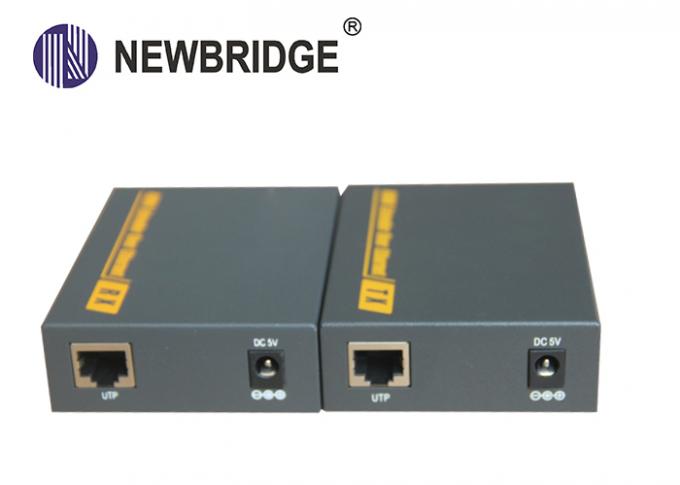

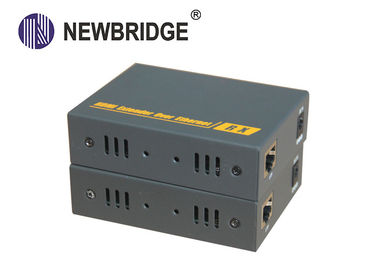

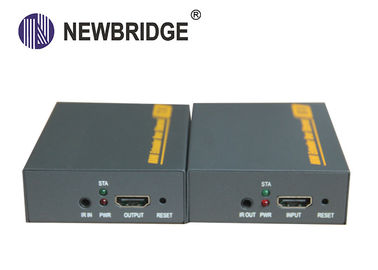

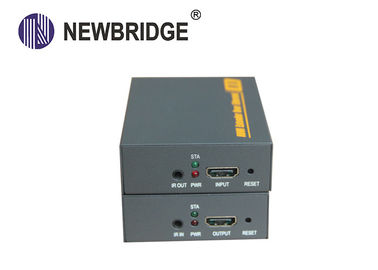

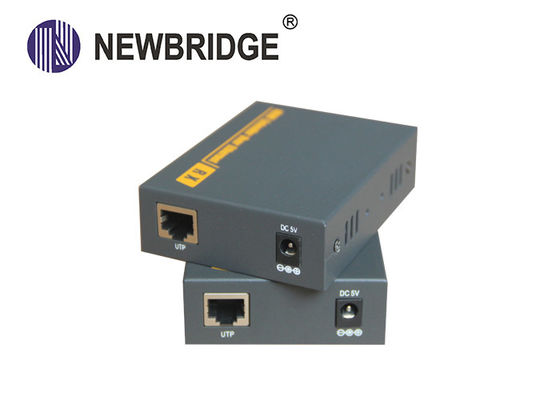

Fiber Optic Extender 120M HDMI Extender HD 1080P IR transmitter and receiver over single Ethernet cat 5e/6 cable
Description
The HDMI extender provides extension of HDMI signals long distances over a single CAT6 cable, it supports high resolution up to 1080p, The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features
l Transmits HDMI video and audio signals up to 120M over a single Cat6 cable;
l Support video resolution up to 1920*1080@60Hz, 3D signal;
l Support copy EDID, can match many kinds of display device;
l Support IR signal transmission;
l Compliance with HDMI 1.3 and HDCP 1.2 standard;
l High compatibility, can auto-match source and display device;
l Built-in automatic adjustment system, make the image smooth, clear and stable;
l Built-in ESD protection system;
l Simple to install, plug and play;
