| Size: | 480*162*43mm | Power Supply: | AC110V/220V |
|---|---|---|---|
| Type: | Single Mode，single Fiber | Storage Temperature: | Storage Temperature |
| Power Consumption: | 3-5 Watts | Port: | 8 BNC SD/HD-SDI |

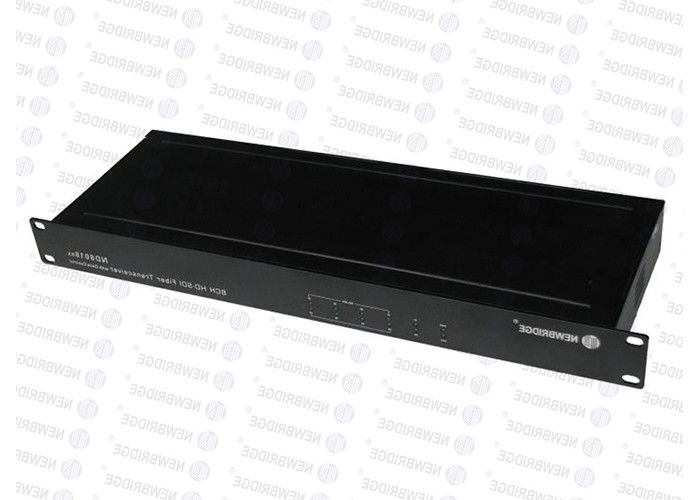

AC 220V CE Certification HD SDI Converter 1550nm Support 8 Channel Video
Newbridge® ND8014D SD HD-SDI series Optical Transceivers are a group of perfect and economic transmission device to transmit 4CH 8CH SD HD-SDI video to up to further distance by one fiber cable, embedded audio and RS485 data via fiber-optic Transmitter is used as sending and Receiver is used as receiving System support in accordance with SMPTE292M, SMPTE259M standard, as well as DVB-ASI (EN50083-9) digital TV signal format
Feature
◆Support 4/8 channel SD/HD/3G-SDI video embedded audio signal via fiber
◆SD,HD auto-detection, supported transmission rate from 270M bit/s to 1.485G bit/s
◆Transmission distance is from 0km to 60KM via multimode fiber or single mode fiber.
◆Support SMPTE 259M (1.485Gbps),SMPTE 259M (270Mbps) and DVB-ASI
◆With 2CH Bi-Di data
◆Operation status indication by LED
Specification
| Model/Name | ND8104D | ND8108D | |
| Quantity/Type | Single Mode, Single Fiber | ||
| Video port | 4CH BNC SD/HD-SDI | 8CH BNC SD/HD-SDI | |
| Transmission Distance | 0m-20Km/40km/60KM optional | ||
| Fiber Connector | FC | ||
| Wave Length | 1310nm/1550nm | ||
| Transmitted power | -10dbm～-3dbm <-34dbm |
||
| Maximum Receiving Sensitivity | <-34dbm | ||
| Signal Type | SD-SDI(270Mbps)/HD-SDI(1.485Gbps) | ||
| Support Input Format | SD: 525i @ 59.94Hz, 625i @ 50Hz HD: 720p @ 25Hz / 29.97Hz / 30Hz 720p @ 50Hz / 59.94Hz / 60Hz 1080i @ 50Hz / 59.94Hz / 60Hz 1080p @23.98Hz/24Hz/25Hz/29Hz/30Hz |
||
| Video Standard | SMPTE 292M , SMPTE 259M | ||
| DATA comm. method | 2CH RS-485/Half duplex/ Industrial terminals | ||
| In-out electrical level | 800mVp-p±10% | ||
| In-0ut Ohm | 75Ohm | ||
| Digital Audio | 48KHz | ||
| AES digital audio channel | 8CH | ||
| Power Supply | AC110V/220V | ||
| Power Consumption | 3~5 Watts | ||
| Operating Temperature | 0°C ~ 60°C / 32°F ~ 140°F | ||
| Storage Temperature | -30°C ~ 70°C / -22°F ~158°F | ||
| Relative Humidity | 20~90% RH (Non-condensation) | ||
| Dimension | 480*162*43mm/18.9*6.38*1.69in | ||
| Weight | 2880g(Tx and Rx) | 2950g(Tx and Rx) | |

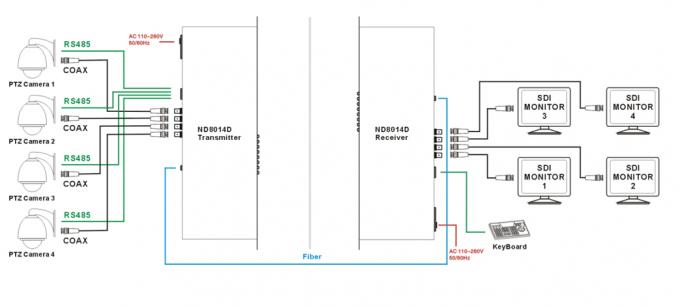

Connection diagram
Order information
| Part No | Description of product | Unit |
| ND8018D-Tx | SD/HD-SDI Optical-Transmitter | pcs |
| ND8018D-Rx | SD/HD-SDI Optical-Receiver | pcs |
