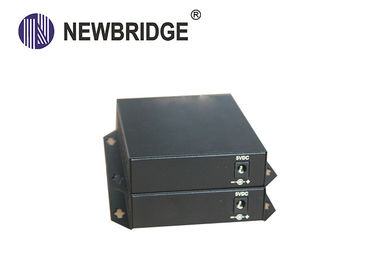

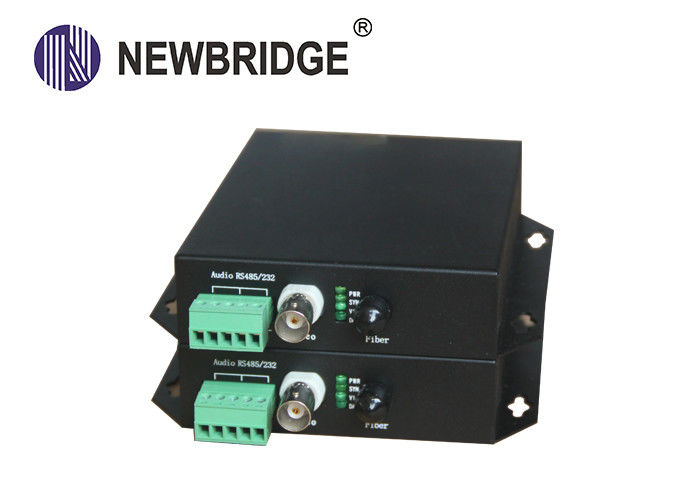

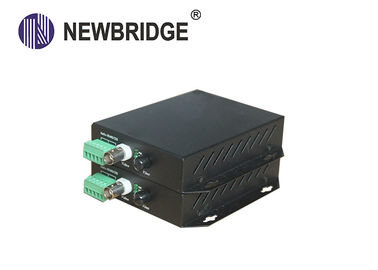

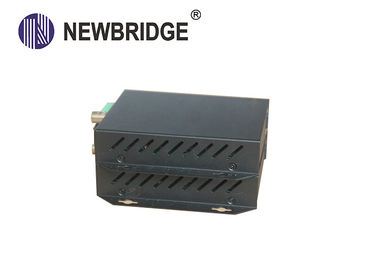

1 Channel Bi-Directional Data to Fiber SM 20km Optical Video converter

1 Channel Bi-Directional Data to Fiber SM 20km Optical Video converter

    • 1 Channel Bi-Directional Data to Fiber SM 20km Optical Video converter
    • 1 Channel Bi-Directional Data to Fiber SM 20km Optical Video converter
    • 1 Channel Bi-Directional Data to Fiber SM 20km Optical Video converter
    • 1 Channel Bi-Directional Data to Fiber SM 20km Optical Video converter
    • 1 Channel Bi-Directional Data to Fiber SM 20km Optical Video converter
  • 1 Channel Bi-Directional Data to Fiber SM 20km Optical Video converter

    Product Details:

    Place of Origin: SHENZHEN,CHINA
    Brand Name: NEWBRIDGE
    Certification: CE,FCC
    Model Number: ND-TRH1VZ1DF-S20

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pair
    Price: Negotiation
    Packaging Details: packing can be done by customer's requested, usually used in carton
    Delivery Time: According to the quantiy and stocking , 3-4 working days after payment
    Payment Terms: T/T , Western Union
    Supply Ability: 5000pcs per month
    Contact Now
    Detailed Product Description
    POWER: DC 5V 2A/AC 90-240V Port: FC
    Distance: 20 Rate: 720p,1080p
    Wavelength: 1310nm/1550nm Humidity: 10%~90% RH

    1 Channel Bi-Directional Data to Fiber SM 20km Optical Video converter



    ND-TRH1VZ1DF-S20 Series are non-managed media converters, which give you economic solutions for media conversion between fiber and copper Ethernet. It provides you SC,FC or ST connectors for your fiber optic cables and RJ45 for twisted pair UTP cable connection.The maximum extension is up to 120km over fiber.



    Features

    • Self-adaptive output HDTVI signal
    • Loss-less real time non-compression transmission
    • LED indicators
    • Fully enclosed dust-proof design





    Optical
    Wavelength                 1310nm&1550nm
    Output Power               -8~3dBm
    Optic fiber                    50/125u multi mode,62.5/125u multi mode,9/125u single mode
    Rx sensitivity               -25dBm
    Optical connector         FC/ST/SC (optional)
    Distance                       2KM




    Video

    Number of Channels                          1
    Input/output impedance                     BNC  75Ω (unbalance)
    Standard video input/output voltage  1.0Vp-p
    Video Bandwidth                                45MHz

    Sampling Bandwidth                          10bit
    Sampling Frequency                          108MHz
    Rise and Fall time                              <0.8ns

    Optical Signal Intrinsic Jitter               <0.2 UI
    Differential Gain                                  < ±1.5%
    Differential Phase                               < ±1°
    Connector                                           BNC





    Other
    Power                                                 DC5V 2A
    Power Consumption                           ≤6W
    Temperature                                       -40ºC ~75ºC
    Humidity                                             10%~90% RH
    Installation                                          Wall mount
    MTBF                                                 ≥ 100000Hours



    1 Channel Bi-Directional Data to Fiber SM 20km Optical Video converter

    1 Channel Bi-Directional Data to Fiber SM 20km Optical Video converter

    1 Channel Bi-Directional Data to Fiber SM 20km Optical Video converter

    1 Channel Bi-Directional Data to Fiber SM 20km Optical Video converter

    1 Channel Bi-Directional Data to Fiber SM 20km Optical Video converter
