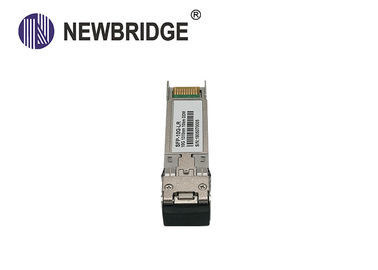

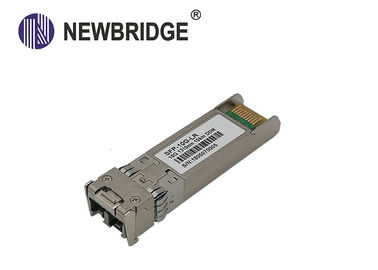

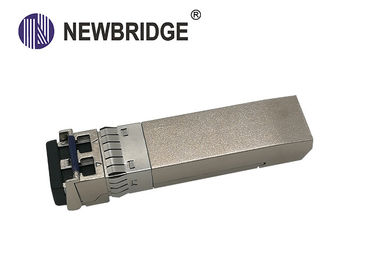

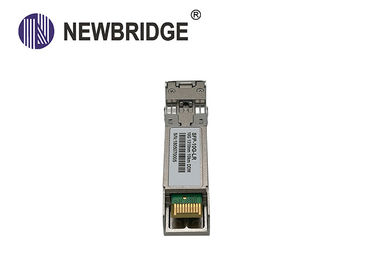

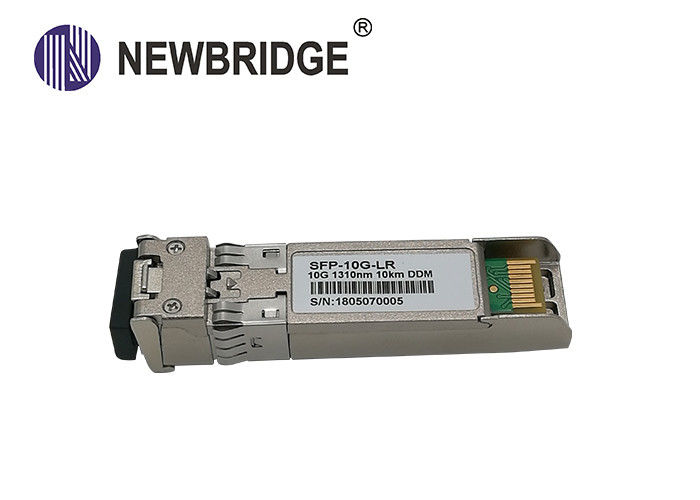

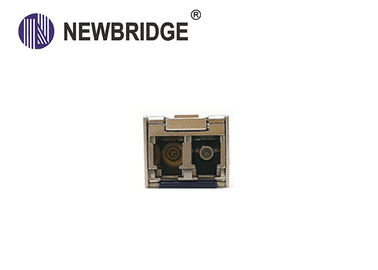

10G 10km Bi - Directional SFP Optical Transceiver Single fiber Single Mode with DDM



Product Features



●Supports 9.95 to 10.5Gb/s bit rates

●Duplex LC connector

●Hot pluggable SFP+ footprint

●Uncooled 1310nm DFB transmitter, PIN photo-detector

●Applicable for 10km SMF connection

●Low power consumption, < 1W

●Digital Diagnostic Monitor Interface

●Optical interface compliant to IEEE 802.3ae 10GBASE-LR

●Electrical interface compliant to SFF-8431

●Operating case temperature:

Commerical:-20 to 75 °C

Industrial:-40 to 85 °C



Applications



●10GBASE-LR/LW at 10.3125Gbps

●10G Fiber Channel

●Other optical links



Product Descriptions



The transceiver Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 10km over SingleMode fiber. They are compliant with SFF-8431,SFF-8432 and IEEE 802.3ae 10GBASE-LR/LW. The transceiver designs are optimized for high perform-ance and cost effective to supply customers the best solutions for telecommunication.



Functional Diagram







Absolute Maximum Ratings



Parameter	Symbol	Min.	Max.	Unit	Note
Supply Voltage	Vcc	-0.5	4.0	V
Storage Temperature	TS	-40	85	°C
Relative Humidity	RH	0	85	%



Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.



General Operating Characteristics



Parameter		Symbol	Min.	Typ	Max.	Unit	Note
Data Rate	Ethernet			10.3125		Gb/s
	Fiber Channel			10.518
Supply Voltage		Vcc	3.13	3.3	3.47	V
Supply Current		Icc5		200	285	mA
Operating Case Temp.		Tc	0		70	°C
		TI	-40		80







Electrical Characteristics (TOP(C) = -20 to 75 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)



Parameter	Symbol	Min.	Typ	Max.	Unit	Note
Transmitter
Differential data input swing	VINPP	180		700	mVpp	1
Transmit Disable Voltage	VD	VCC-0.8		Vcc	V
Transmit Enable Voltage	VEN	Vee		Vee+0.8
Input differential impedance	Rin		100		Ω
Receiver
Differential data output swing	Vout,pp	300		850	mVpp	2
Output rise time and fall time	Tr, Tf	28	2.0	Vcc+0.3	Ps	3
LOS asserted	VLOS_F	VCC-0.8		Vcc	V	4
LOS de-asserted	VLOS_N	Vee		Vee+0.8	V	4

Note:

1. Connected directly to TX data input pins. AC coupling from pins into laser driver IC.

2. Into 100Ω differential termination.

3. 20 – 80%. Measured with Module Compliance Test Board and OMA test pattern. Use of four 1’s and four 0’s sequence in the PRBS 9 is an acceptable alternative.

4. LOS is an open collector output. Should be pulled up with 4.7kΩ – 10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1.







Optical Characteristics (TOP(C) = -20 to 75 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)



Parameter	Symbol	Min.	Typ	Max.	Unit	Note
Transmitter
Operating Wavelength	λ	1260		1355	nm
Ave. output power (Enabled)	PAVE	-6		0	dBm	1
Side-Mode Suppression Ratio	SMSR	30			dB
Extinction Ratio	ER	4	4.5		dB
RMS spectral width	Δλ			1	nm
Rise/Fall time (20%~80%)	Tr/Tf			50	ps	2
Dispersion penalty	TDP			3.2	dB
Relative Intensity Noise	RIN			-128	dB/Hz
Output Optical Eye	Compliant with IEEE 0802.3ae
Receiver
Operating Wavelength		1260		1600	nm
Receiver Sensitivity(ER=4.5)	PSEN1			-13.6	dBm	3
Receiver Sensitivity(ER=6)	PSEN2			-14.4	dBm	3
Average Receive Power	PAVE	-14.2		+0.5	dBm
Receiver Reflectance	Rrx			-12	dB
LOS Assert	Pa	-30			dBm
LOS De-assert	Pd			-17	dBm
LOS Hysteresis	Pd-Pa	0.5		4	dB



Notes:

1. Average power figures are informative only, per IEEE 802.3ae.

2. Valid between 1260 and 1355 nm. Measured with worst ER; BER<10-12; 231 – 1 PRBS.

3. Valid between 1260 and 1355 nm. Per IEEE 802.3ae.



Pin Defintion And Functions









Pin	Symbol	Name/Description
1	VEET [1]	Transmitter Ground
2	Tx_FAULT [2]	Transmitter Fault
3	Tx_DIS [3]	Transmitter Disable. Laser output disabled on high or open
4	SDA [2]	2-wire Serial Interface Data Line
5	SCL [2]	2-wire Serial Interface Clock Line
6	MOD_ABS [4]	Module Absent. Grounded within the module
7	RS0 [5]	Rate Select 0
8	RX_LOS [2]	Loss of Signal indication. Logic 0 indicates normal operation
9	RS1 [5]	Rate Select 1
10	VEER [1]	Receiver Ground
11	VEER [1]	Receiver Ground
12	RD-	Receiver Inverted DATA out. AC Coupled
13	RD+	Receiver DATA out. AC Coupled
14	VEER [1]	Receiver Ground
15	VCCR	Receiver Power Supply
16	VCCT	Transmitter Power Supply
17	VEET [1]	Transmitter Ground
18	TD+	Transmitter DATA in. AC Coupled
19	TD-	Transmitter Inverted DATA in. AC Coupled
20	VEET [1]	Transmitter Ground



Notes:

1.Module circuit ground is isolated from module chassis ground within the module.

2.should be pulled up with 4.7k – 10k ohms on host board to a voltage between 3.15Vand 3.6V.

3.Tx_Disable is an input contact with a 4.7 kΩ to 10 kΩ pullup to VccT inside the module.

4.Mod_ABS is connected to VeeT or VeeR in the SFP+ module. The host may pull this contact up to Vcc_Host with a resistor in the range 4.7 kΩ to10 kΩ.Mod_ABS is asserted “High” when the SFP+ module is physically absent from a host slot.

5. RS0 and RS1 are module inputs and are pulled low to VeeT with > 30 kΩ resistors in the module.



Digital Diagnostic Specifications



The transceivers can be used in host systems that require either internally or externally calibrated digital diagnostics.



Parameter	Symbol	Units	Min.	Max.	Accuracy	Note
Transceiver temperature	DTemp-E	ºC	-45	+90	±5ºC	1,2
Transceiver supply voltage	DVoltage	V	2.8	4.0	±3%
Transmitter bias current	DBias	mA	0	127	±10%	3
Transmitter output power	DTx-Power	dBm	-2	+3	±2dB
Receiver average input power	DRx-Power	dBm	-20	+1	±2dB

Notes:

1.When Operating temp.=0~70 ºC,the range will be min=-5,Max=+75

2. Internally measured

3. The accuracy of the Tx bias current is 10% of the actual current from the laser driver to the laser



Typical Interface Circuit







Recommended power supply filter







Note:

Inductors with DC resistance of less than 1Ω should be used in order to maintain the required voltage at the SFP input pin with 3.3V supply voltage. When the recommended supply filtering network is used, hot plugging of the SFP transceiver module will result in an inrush current of no more than 30 mA greater than the steady state value







Package Dimensions





Ordering Information



Part Number	Description
	SFP+,9.95 to 10.5Gb/s, 1310nm, 10km, -20~75℃, with DDM
	SFP+,9.95 to 10.5Gb/s, 1310nm, 10km, -40~85℃, with DDM
