Single Mode Single Fiber VGA Fiber Optic Extender , Digital Optical Cable Extender

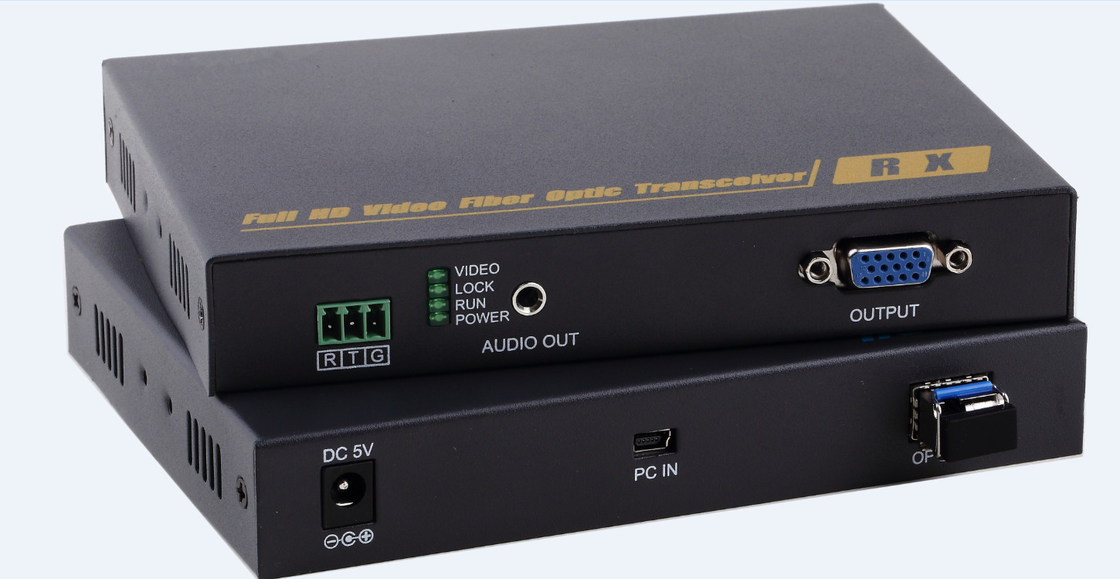

VGA Fiber Optic Extender with KVM port and single mode single fiber

1. Description

The Fiber optic extender provides extension of VGA signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, transmitter local output, RS232 signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

2. Features

l Transmits VGA video signals up to 10km over one fiber optic cable;

l Support video resolution up to 1920*1080P@60Hz;

l Support keyboard and mouse signal transmission;

l Support external stereo audio unidirectional transmission;

l Support transmitter one channel signal output;

l Support RS232 signal unidirectional transmission, baud rate self-adaptive;

l High compatibility, can auto-match source and display device;

l Built-in automatic adjustment system, make the image smooth, clear and stable;

l Built-in ESD protection system;

l Simple to install, plug and play;

3.Specifications

4. Panel

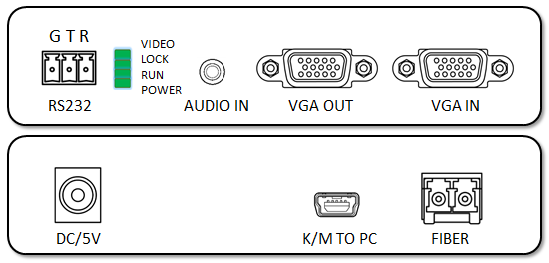

Transmitter:

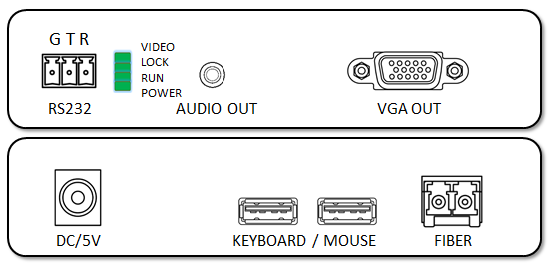

Receiver:

5. Package list

l VGA optical fiber transmitter ………. 1 pc

l VGA optical fiber receiver …………..1 pc

l Fiber optic module TX/RX …………..1 set

l Power adapter …………………………… 2 pcs

l User manual ……………………………….1 pc

6. Installation

1. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver,

2. Connect an VGA cable between the VGA input port of transmitter and the VGA output port of the video source,

3. Connect the VGA output port of receiver to the display device with VGA cable,

4. Connect the transmitter optical port to the receiver optical port using one fiber optic cable.

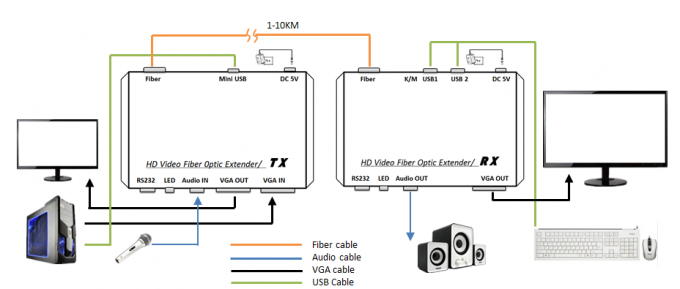

7. Diagram
