Self Adaptive LC Connector DVI Fiber Extender Plug And Play With KVM Port

Self Adaptive LC Connector DVI Fiber Extender Plug And Play With KVM Port

    • Self Adaptive LC Connector DVI Fiber Extender Plug And Play With KVM Port
    • Self Adaptive LC Connector DVI Fiber Extender Plug And Play With KVM Port
    • Self Adaptive LC Connector DVI Fiber Extender Plug And Play With KVM Port
  • Self Adaptive LC Connector DVI Fiber Extender Plug And Play With KVM Port

    Product Details:

    Place of Origin: SHENZHEN,CHINA
    Brand Name: NEWBRIDGE
    Certification: FCC,CE
    Model Number: ND-N8110DEKM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: Negotiation
    Packaging Details: packing can be done by customer's requested, usually used in carton
    Delivery Time: According to the quantiy and stocking , 3-4 working days after payment
    Payment Terms: T/T , Western Union
    Supply Ability: According to the different products , the monthly output is different
    Contact Now
    Detailed Product Description
    Fiber: LC Connector DC/5V: Power Adapter Socket
    RS232: DB9 Socket Audio IN/OUT: Stereo Audio Signal Input/output
    DVI IN/OUT: DVI Input/output Temperature: Operating: -5℃ ~ +70℃
    Humidity: Operating: 5% ~ 90% Dimension: 136*130*30mm

    DVI Fiber Optic Extender with KVM port and LC connector



    Description



    The HEL-N8110DEKM Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, EDID pass-through, KVM, RS232 signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.



    Features



    ★ Transmits DVI video signals up to 1km over one fiber optic cable;

    Support video resolution up to 1920*1080P@60Hz;

    Support EDID pass-through function, can match many kind display device;

    Support keyboard and mouse signal transmission;

    Support external stereo audio unidirectional transmission;

    Support RS232 signal bidirectional transmission, baud rate self-adaptive;

    Compliance with DVI1.0 and HDCP 1.2 standard;

    High compatibility, can auto-match source and display device;

    Built-in automatic adjustment system, make the image smooth, clear and stable;

    Built-in ESD protection system;

    Simple to install, plug and play;





    Specifications



    Parameter

    Description

    Video

    Standards

    DVI 1.0; HDCP 1.2

    Maximum pixel clock

    165MHz

    Maximum data rate

    6.75Gbps

    Resolution range

    Up to 1920X1080P@60Hz

    Connector

    Female HDMI type A

    Impedance

    100Ω

    Audio

    Interface

    3.5mm earphone seat

    Signal type

    Stereo

    RS232

    Interface

    DB9 socket

    Signal direction

    Bidirectional

    Baud rate

    Self-adaptive, Max:115200bps

    Data bits

    8

    KVM

    Interface

    To PC: standard MINI-USB, PS2 optional

    To K/M: standard USB, PS2 optional

    Optical fiber

    Interface

    LC connector

    Fiber type

    Single-mode single fiber

    Wavelength

    Single-mode 1310nm

    Interface bandwidth

    6.25Gbps

    Transmission distance

    OM3 multi-mode fiber: maximum 300m,

    Single-mode fiber: standard 1km

    Other

    Power supply

    The power adapter: DC 5V/2A

    Power dissipation

    MAX 6W

    Temperature

    Operating: -5℃ ~ +70℃

    Humidity

    Operating: 5% ~ 90%

    Dimension

    136*130*30mm

    The warranty

    1 year free warranty, life-long maintenance

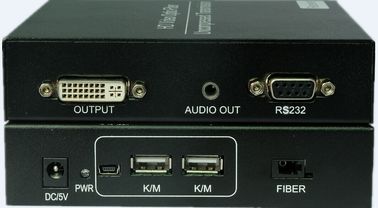

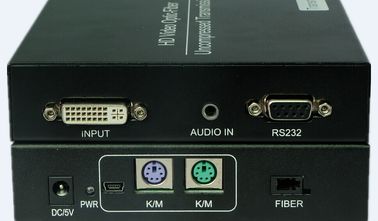

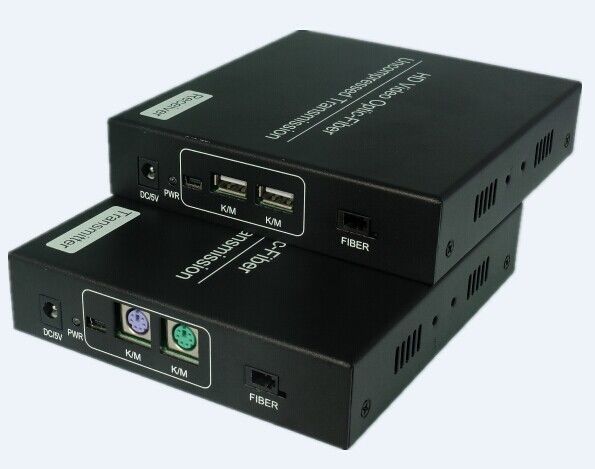

     Panel

    Self Adaptive LC Connector DVI Fiber Extender Plug And Play With KVM Port

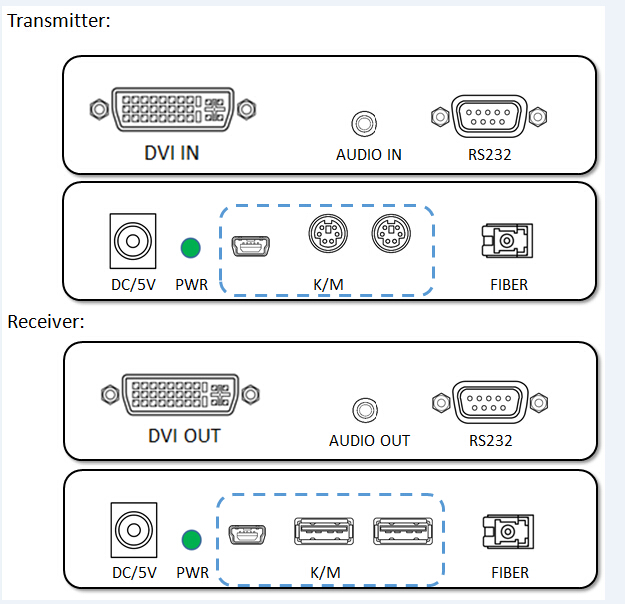

    Port name

    Description

    DVI IN/OUT

    DVI input/output

    Audio IN/OUT

    Stereo audio signal input/output

    RS232

    DB9 socket

    K/M

    1. Transmitter connect to PC

    • Receiver connect to keyboard and mouse

    DC/5V

    Power adapter socket

    Fiber

    LC connector

    LED indicator

    Description

    PWR

    System power indicator



    Note: DVI audio output is default, when detect external audio input, switch to external audio.





    Package list



    n DVI optical fiber transmitter ………. 1 pc

    n DVI optical fiber receiver ……………. 1 pc

    n Power adapter ………………………………..2 pcs

    l User manual ………………………………….. 1 pc





    Installation



    1, Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver,

    2, Connect an DVI cable between the DVI input port of transmitter and the DVI output port of the video source,

    3, Connect theDVI output port of receiver to the display device with DVI cable.

    4, Connect the transmitter optical port to the receiver optical port using one fiber optic cable.

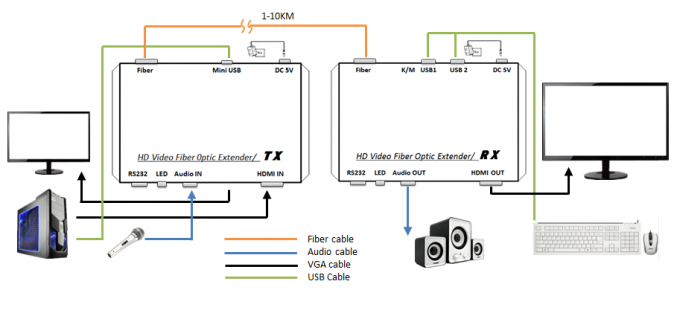

    Diagram





    Self Adaptive LC Connector DVI Fiber Extender Plug And Play With KVM Port
