Resolution: | 1080p | Power Supply: | DC 5V |
---|---|---|---|
Operating Temperature Range: | -5 To +35°C | Operating humidity range: | 5 To 90 % RH (no Condensation) |
Input and output audio interface: | 3.5MM Audio | Distance: | 5-40km |

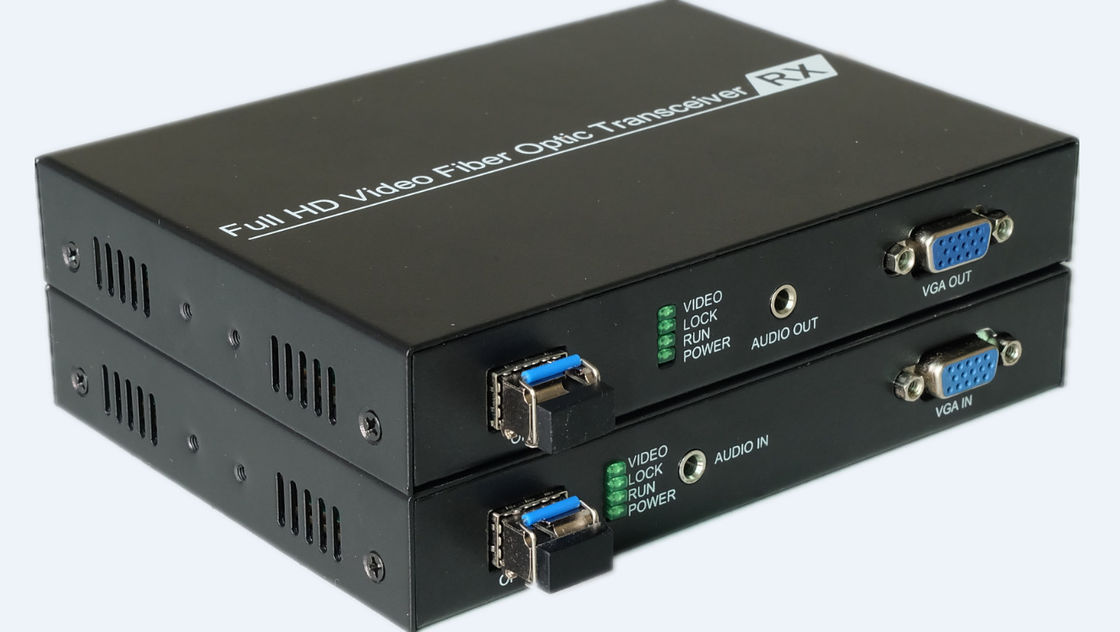

ND-N8110V VGA Optical transmitter and Receiver Over Fiber
Overview:
The product consists of the transmitter and the receiver, use advanced uncompressed digital HD video and high-speed digital fiber optic transmission technology, you can easily transmit a variety of resolutions of computers, high-definition video sources, HD DVD / DVR and other equipment output of VGA HD signals over long distances to the remote, and with local VGA loop-through, independent analog audio, forward 232, anti-interference ability, ensure signal integrity and stability.
Features:
Transmitter interface | Function Description |
VGA IN | VVGA signal input port |
VGA OUT | VGA signal output port |
AUDIO IN | Audio signal input port |
OPT OUT | Optical fiber output interface |
DC | 5V power input |
UART | Serial communication interface |
Receiver interface | Function Description |
VGA OUT | VGA signal output port |
AUDIO OUT | The audio signal output |
OPT IN | Optical input interface |
DC | 5V power input |
UART | Serial communication interface |
Indicator | VGA Transmitter | VGA Receiver | |
VIDEO | ON | Video signal | |
OFF | NO Video signal | ||
LOCK | ON | Lock the video signal | |
OFF | Unlock the video signal | ||
RUN | ON | The board operating normal | |
OFF | The board not operating | ||
POWER | ON | The equipment on power | |
OFF | The equipment not on power |
Specifications
Operating Temperature Range | -5 to +35°C |
Operating humidity range | 5 to 90 % RH (no condensation) |
Input and output video signal | VGA |
Support Video Format |
1920*1080/60Hz,1280*1024/60Hz, 1280*768/60Hz,1280*720/60Hz, 1024*768/60Hz, 800*600/60Hz, |
Transmission distance |
5KM-40KM The default is 5KM |
Input and output audio interface | 3.5MM Audio |
Support input and output audio formats | 44.1K,48K,96K,176K,192K |
Serial port baud rate | 115200 and following adaptively |
Input Power | DC5V |
Power Consumption |
VGA Transmitter 4W VGA Receiver 4W |
Dimensions | Long * Wide * High (mm)120X97.5X25.2 |
Package Size |
Installation
1. Use the VGA cable connect the VGA input signal to the VGA_IN.
2. Use the VGA cable connect the VGA output signal to the VGA_OUT
3. Connect the audio input signal to the AUDIO IN.
4. Connect the audio output signal to the AUDIO OUT.
5. Connect the serial to the UART.
6. Use the LC interface optic fiber connect the OPT IN and OPT OUT.
7. Power to the device.
