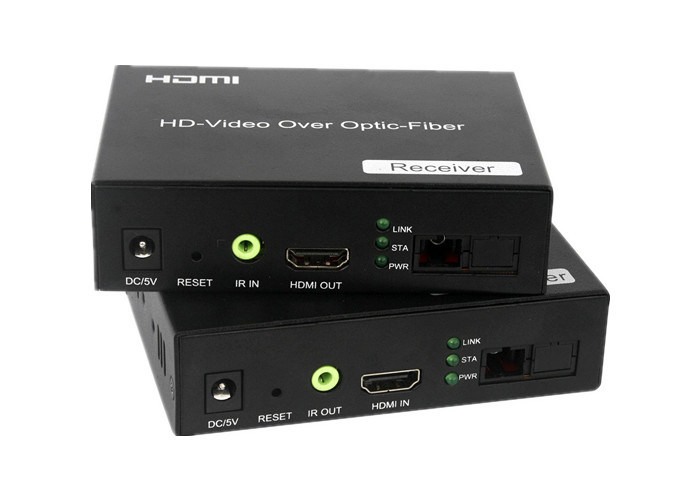

Automatic Adjustment HDMI Fiber Optic Extender FC 20km With IR Control

Features

Support HDMI 1.3/HDCP1.1 & 1.2

It supports fiber transmission at the same time.

Support point to point, point to multipoint, and transmission mode

to support infrared extension, you can use the infrared remote control to control the set-top box or blue light at the receiving site.

Pure hardware design, plug and play, no additional software needs to be installed.

install

Use the HDMI line to connect the HDMI signal source to the 8110HT and 8110HR output to the display device.

Connects a pair of SC connectors of a pair of fiber optic jumpers to the SC port of the video transmission device. It is noted that both ends of the same fiber must be connected to the TX and RX ports of the optical fiber transceiver interface, and the other end must be interconnected, otherwise the fiber can not connect.

Configure infrared back control function, the infrared receiving head is connected with HDMI TX, HDMI RX. and access the infrared emission head will launch its head at the infrared receiving port need to control equipment.

Equipment electrified

At this time, the POWER light of the video transmission equipment is bright, and the other lights are first flashing in sequence according to the order of self inspection. When the STA lights flicker, the device transmits video.
