Gigabit 4rj45 4 Port 10 100 1000M Media Converter 4*10/100/1000 Base -TX Switch Over Fiber Cable

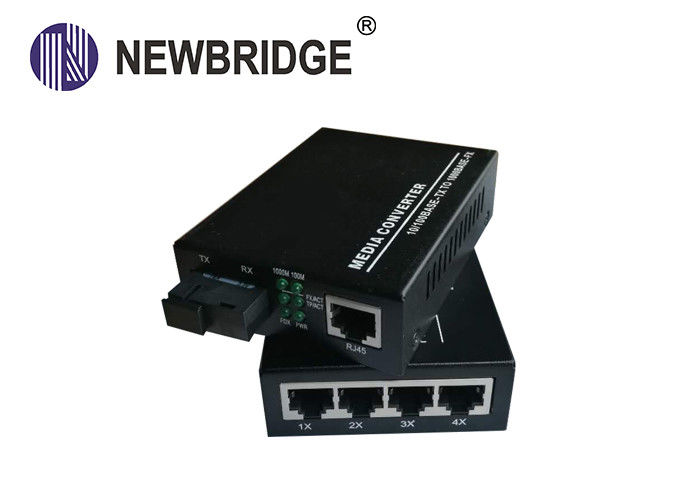

Large Image : Gigabit 4rj45 4 Port 10 100 1000M Media Converter 4*10/100/1000 Base -TX Switch Over Fiber Cable

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	NEWBRIDGE
Certification:	FCC,CE
Model Number:	ND-920SW-S20-4

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	packing can be done by customer's requested, usually used in carton
Delivery Time:	According to the quantiy and stocking , 3-4 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	According to the different products , the monthly output is different

Contact Now

Detailed Product Description

Power Dissipation:	＜2.5W	Fiber Connector:	SC Standard, ST/FC Optional
Fiber Distance:	20KM	Power Supply:	DC 5V,AC 100-240V;
UTP Rate:	10/100M	MTBF:	50000 Hours

4*10/100/1000Base-TX Switch over Fiber Cable, gigabit 4rj45 4 port fiber optic media converter

1. Overview

Gigabit 4rj45 4 Port 10 100 1000M Media Converter 4*10/100/1000 Base -TX Switch Over Fiber Cable Newbridge® The seriels optical fiber transceiver(switch) is a new type of high performance transmission equipment developed and produced .All equipment and system performance indicators meet international standards and meet your technical requirements.This series of optical fiber transceivers is designed for urban fiber digital broadband network. The product is positioned in the broadband network access market based on the design idea of high quality, high reliability, high bandwidth and low price.It can provide users with broadband bandwidth, stable performance, powerful functions, and low cost urban broadband fiber network solutions for telecom level operation services.

2.Feature

1*1000M SC fiber interface (FC/LC optical port can be customized); 4*10/100M Ethernet interfaces
Maximum transmission distance: 0.5 ~ 120 km.
The dynamic buffer allocation in front equalizes the network load and prevents blocking.
adopt IEEE802.3 10BaseT Ethernet and IEEE802.3u 100base-tx,IEEE802.3ab 1000base-tx and 1000base-fx fast Ethernet standards;
Each UTP exchange port of the exchange port can automatically recognize the straight line (MDI) and the cross line (mdi-x).
Support 1024 MAC addresses;
Automatic MAC address learning and update function.
select store-and-forward
Ballast provides maximum 8G data storage bandwidth;
Enable LED indicator light to monitor the working status of each port

3．Application Diagram

Gigabit 4rj45 4 Port 10 100 1000M Media Converter 4*10/100/1000 Base -TX Switch Over Fiber Cable

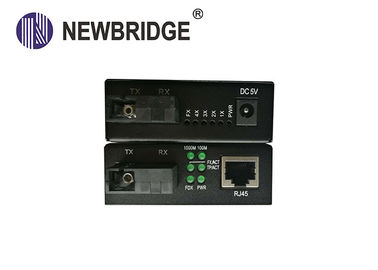

Panel

5. Specifications

Parameters	Specification
Standards	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-TX/FX
Rj45 port	4 Rj45 port 10/100/1000Base-T(X) auto negotiation speed, Full/Half duplex mode, Auto MDI-MDI-X connection Up to 100M Cat-5 transmission distance
Fiber port	1 Fiber Port Comply with IEEE802.3z Rate: 1000Mbps Wavelength: 850/nm1310nm/1550nm Up to 550M transmission distance with multi-mode Up to 20km,40km,60km,80km transmission distance with single-mode SC/LC interfaces optional
Switch Properties	Mac address table:1k Memory buffer:256K Acket Buffer Size: 1Mbit Processing Type: Store and Forward
Power Supply	External : DC/5V2A Built-in: 90 V to 240 V AC 50Hz to 60 Hz Power Consumption : ≤5W
Operating Temperature	0 °C to +65 °C
Storage Temperature	-20 °C to +65 °C
Relative Humidity	5% to 90% (non-condensing)
Dimensions	95mm * 70 mm * 25mm
Weight	165g

6. Order Information

Part No	Specification	Description	Unit
ND-920SW-S20-4	10/100/1000M bit/s	Single-mode 1310nm,20KM,SC,19,220V/AC,5V2A/DC,11000Base-Fx+4*10/100Base-Tx		PC

Gigabit 4rj45 4 Port 10 100 1000M Media Converter 4*10/100/1000 Base -TX Switch Over Fiber Cable
